AMGO Double Wide 4-Post Lift (Extra Long/Tall) – 9,000 lb Capacity | 409-DPX
Extra Long/Tall, Double-Wide Storage: AMGO 409-DPX 9,000 lb 4-Post Parking Lift
Finding the right lift for multi-vehicle storage can be a real headache. Standard lifts often force you to compromise on space, height, or load capacity. Especially if you need to store multiple full-size vehicles side by side. The AMGO 409-DPX solves that problem by giving you extra length, extra height, and the ability to park two vehicles per platform. With a 9,000 lb lifting capacity and a 6,000 lb max car weight per side, it’s built for personal garages and professional facilities where maximizing space matters most. Double wide 4-post lifts are increasingly the choice for owners with typical passenger cars and light trucks, or work vans where standard 4-post column spacing makes loading awkward and tight. The 409-DPX takes that further with extra-long runways and extra-tall columns.
Designed for convenience and safety, this double-wide 4 post lift offers a minimum platform height of just 5 15/16', making it easier to load even low-clearance sports cars. AMGO’s patented concealed safety lock control and dual safety system keep vehicles secure during every lift. The foldable drive-on ramps save space when not in use, while the double “S” shaped columns provide unmatched strength and stability for long-term reliability. Wider column spacing eliminates the door-clearance compromises of standard 4-post lifts, while extra-long runways accommodate long-wheelbase trucks and Class B vans. The extra-tall columns clear lifted trucks and high-side SUVs.
Whether you’re running a high-volume service shop, managing a storage facility, or just want the ultimate solution for your home garage, this vehicle storage lift delivers on every front. Its extra long/tall design gives you the flexibility to handle bigger vehicles, store more in the same footprint, and keep everything safe, organized, and accessible. For owners with full-size, lifted, or extended-cab vehicles, the 409-DPX is sized for the dimensions that standard 9K lifts can't quite handle.
Need a different capacity or configuration? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our 2-Post vs 4-Post guide to pick the right style. Questions? Call Support Desk.
Benefits of the AMGO 409-DPX Double-Wide Parking Lift
Key Features of the AMGO 409-DPX Double-Wide Lift You'll Love:
• 9,000 lb Lifting Capacity: Handles everything from compact cars to full-size SUVs with ease; 6,000 lb per platform supports two large vehicles side by side. 9K capacity at the extra-long and extra-tall geometry covers full-size and lifted vehicles that won't fit standard double-wide configurations.
• Low-Profile Platform Height: At just 5-15/16' minimum height, loading and unloading low-clearance vehicles is simple and safe. Low-profile platform height accommodates sports cars and lowered vehicles that overhang or scrape on standard 4-post platform geometry.
• Dual Safety System: Primary mechanical locks plus a cable-slack secondary device keep vehicles secure during every lift. Cable-slack secondary safety provides backup if the primary mechanical lock fails. The kind of redundancy commercial-grade storage requires.
• Patented Concealed Safety Lock Control: Manual single-point lock release speeds operation while protecting the mechanism from debris and damage. Concealed lock control protects the mechanism from incidental damage and keeps the bay aesthetics consistent with professional shops.
• Foldable Drive-On Ramps: Four included ramps fold away when not in use, saving valuable floor space and reducing trip hazards. Foldable ramps tuck against the platforms when not in use, freeing floor space for other equipment between storage cycles.
• Double “S” Shaped Columns: Reinforced columns add strength and stability under load for years of daily use. Double S-column geometry distributes the dual-vehicle load across the structural footprint without flex or torsional fatigue under sustained loads.
Minimum Garage Requirements
✓ Ceiling Height: At least 102' (8'6') recommended ✓ Floor Space: 238' L x 198' W (19'10' x 16'6') ✓ Concrete Thickness: Minimum 4' (101.6 mm) ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 1.0 HP 110V/60Hz standard, 2.0 HP 220V/60Hz optional upgrade ✓ Post Height: 96' (8'0') (measure before ordering)
✓ Ceiling Height: At least 102' (8'6') recommended
✓ Floor Space: 238' L x 198' W (19'10' x 16'6')
✓ Concrete Thickness: Minimum 4' (101.6 mm)
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 1.0 HP 110V/60Hz standard, 2.0 HP 220V/60Hz optional upgrade
✓ Post Height: 96' (8'0') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
AMGO 409-DPX 9,000 lb Double-Wide 4-Post Lift Specifications | |
| Manufacturer | AMGO |
| Model | 409-DPX |
| Lifting Capacity | 9,000 lbs |
| Max Car Weight (Per Platform) | 6,000 lbs |
| Lifting Time | 120s |
| Overall Length (Including Ramps) | 238 5/8' |
| Outside Edge of Crossbeams | 198 1/8' |
| Overall Width | 190 9/16' |
| Width Between Columns | 181' |
| Drive Through Width | 169 13/16' |
| Overall Height | 96 5/8' |
| Minimum Height | 5 15/16' |
| Max. Lifting Height | 87 7/8' |
| Max. Lock Height (Top of Runway) | 85 1/8' |
| Max. Height Underneath Runway | 83 1/8' |
| Max. Lock Height Underneath Runway | 80 3/8' |
| Width Between Runways | 37' |
| Overall Width of Single Parking Unit | 74 7/16' |
| Width Between Two Parking Units | 13 3/4' |
| Max. Lock Height Underneath Crossbeam | 78 1/2' |
| Gross Weight | 3,018 lbs |
| Motor | 1.0 HP 110V/60Hz standard; 2.0 HP 220V/60Hz optional upgrade |
| Shipping Dimensions | Length: 5086 mm (200-1/4') Width: 521 mm (20-1/2') Height: 733 mm (28-7/8') |
| Warranty |
Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
AMGO 409-DPX Frequently Asked Questions
What does the DPX add over the standard 409-DP?
Length and height: 238-5/8' overall (vs 208-1/16') and 96-5/8' columns (vs 82-7/8'), giving 83-3/4' of clearance under the runways. That's room for trucks and SUVs both on top and underneath -- the 409-DP remains the pick for low-ceiling garages.
How does a double-wide 4-post lift work?

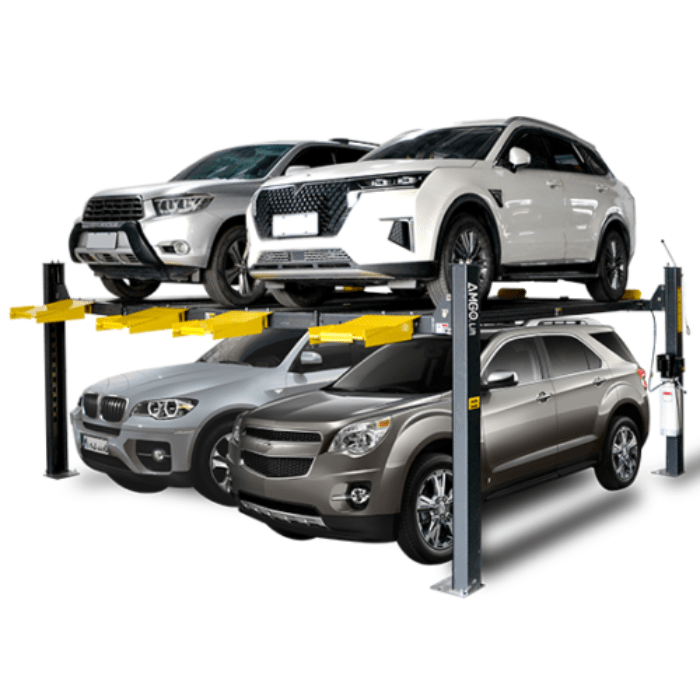

Two parking platforms share one set of four columns: park two vehicles on top, two underneath -- four vehicles in roughly two bays' width (190-9/16' overall). Total capacity is 9,000 lbs with up to 6,000 lbs on either platform.
How much ceiling height do I need?
Plan on at least 102' (8'6') -- the columns stand 96-5/8'. Stacking tall vehicles on both levels takes more; measure your tallest pair before ordering.
Which AMGO 4-post is right for me?
This 409-DPX is the extra-long, extra-tall four-car solution. The 409-DP does the same job under lower ceilings; a single-platform 409-HP costs less if you're storing two vehicles instead of four.
Can I do repair work on the 409-DPX?
Light service works from the runways -- this model pairs with the RJ-6H 6,000 lb rolling jack for wheels-free work, and the drip tray set protects vehicles parked below. The motor cover shields the power unit under a carport.
Do I need to bolt it to the floor?
No -- it's free-standing on concrete at least 4' thick at 3,000 PSI. Anchoring is optional for permanent installs.
Is the AMGO 409-DPX worth it?
Four truck-size parking spots on two bays of concrete, backed by 5 years on structure, 3 on hydraulics, and 2 on electrical. See the Reviews tab above for buyer feedback, and our 2-Post vs 4-Post guide if you're still choosing a style.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
