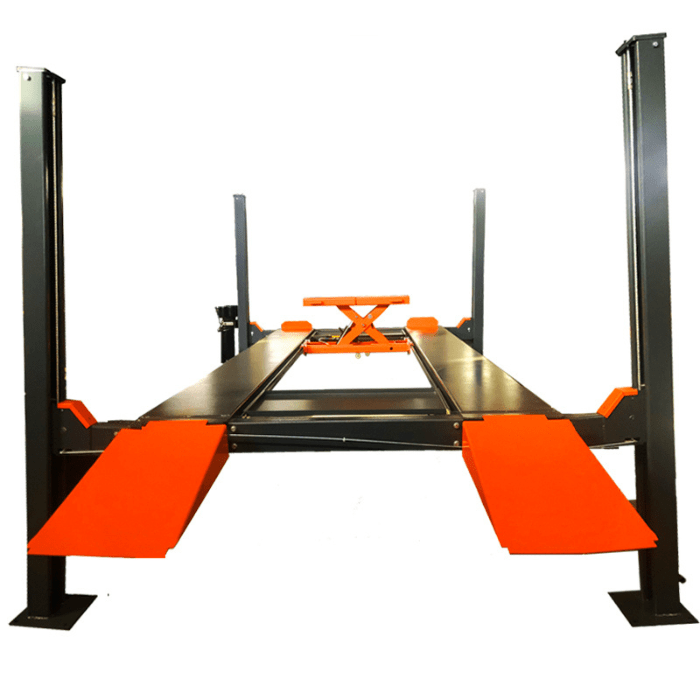

Katool 4 Post Vehicle Lift - 11,000lb Capacity | KT-4H110
Standard Lifts Can't Handle Your Truck? The Katool KT-4H110 Supports 11,000 lbs with Ease
If you've been shopping for a 4 post truck lift that can actually handle your full-size pickup or SUV, you already know how thin the options get above 9,000 lbs. Most lifts in this price range either cut corners on capacity ratings or force you into a commercial-grade unit that costs twice as much and barely fits a residential garage. The KT-4H110 by Katool fills that gap -- a true 11,000 lb rated capacity backed by CE-approved safety certification with 115% dynamic and 150% static load testing, at a price point that makes sense for serious home garages and working shops alike. If you're after a truck lift for your garage that won't be outgrown by your next vehicle, the 11,000 lb class is the sweet spot.
Safety is the first thing buyers ask about, and it should be. This lift doesn't cut corners there -- four mechanical locking devices, each with primary and secondary safety locks, engage every 4.7 inches across 14 positions so you get precise height control every time. Non-skid diamond-plate runways keep tires planted during loading, and the single-point manual release lets you disengage all four locks from one spot instead of walking around the lift. Whether you're storing a vehicle overhead or working underneath one, you'll have the confidence to walk under it without second-guessing the equipment.
Garage fit is the other dealbreaker most buyers run into -- a lift that works on paper but doesn't fit the space you actually have. The KT-4H110 solves that with a power column that mounts on either side, front, or rear, so it adapts to your layout instead of forcing a redesign. It's engineered for free-standing use with no anchor bolts required, runs on either 110V or 220V power, and lifts in 83 seconds. If you've been going back and forth between lifts trying to find one that checks every box -- capacity, safety, fit, and price -- this is the one that stops the search.
Not sure which lift fits your space? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our honest Are Katool Car Lifts Worth It? breakdown. Questions? Call Support Desk.
Benefits of the Katool KT-4H110
Key Features of the Katool 4H110 11000lb Four-Post Car Lift You'll Love:
• 14-Position Adjustable Lock Ladder: Locks engage every 4.7 inches, giving you precise height control whether you're storing a vehicle or working underneath it. Single-point manual release lets you disengage all four locks from one location instead of walking around the lift. That means fewer steps, faster repositioning, and less time between jobs.
• Motor Voltage Options (110V/220V): A true 110-volt car lift out of the box -- this lift comes standard with a 110V motor and can be upgraded to a 220V motor if needed. See Electrical Requirements below for the recommended setup and dedicated-circuit exception. Have a qualified electrician verify the setup for your specific power unit before installation. Full lift cycle is 83 seconds up and 40 seconds down, so you are not left waiting around.
• Free-Standing Design: Engineered for free-standing use without bolting to the floor, which means simpler installation and no drilling into your slab. Set it up, drive on, and start working -- no anchor bolts required for normal operation. Ideal for renters or anyone who might relocate the lift down the road.
• Included Accessories at No Extra Cost: Ships with two drip trays and a jack tray so you're not buying basics separately after the lift shows up. Most competitors charge extra for these or don't offer them at all. Optional caster kits are available, and the KT-RJ50 rolling jack is fully compatible with this lift when you want wheels-off service capability.
• 181.9' Runway Length: Long enough for full-size trucks, extended cabs, and long-wheelbase SUVs without overhang concerns. Runways are 18.7' wide with non-skid diamond plate to keep tires planted during loading and unloading. You won't need to second-guess whether your vehicle actually fits -- it does.
• CE-Certified Safety Standards: This lift has been tested at 115% dynamic loading capacity and 150% static loading capacity to earn its CE certification. That's not a marketing badge -- it's a third-party verification that the lift performs above its rated weight under real conditions. Four independent mechanical locks with dual safety catches on each give you redundancy you can trust.
Minimum Garage Requirements
✓ Ceiling Height: At least 100' (8'4') recommended ✓ Floor Space: 230' L x 126' W (19'2' x 10'6') ✓ Concrete Thickness: Minimum 3.93' (100 mm)
✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: See Electrical Requirements below for setup guidance and the dedicated-circuit exception. ✓ Post Height: 94.88' (7'11') -- measure before ordering
✓ Ceiling Height: At least 100' (8'4') recommended
✓ Floor Space: 230' L x 126' W (19'2' x 10'6')
✓ Concrete Thickness: Minimum 3.93' (100 mm)
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: See Electrical Requirements below for setup guidance and the dedicated-circuit exception.
✓ Post Height: 94.88' (7'11') -- measure before ordering
*This lift is designed for free-standing use and does not require bolting to the ground for normal operation. Regardless of whether the lift is anchored, it must be installed on a concrete surface that meets the manufacturer's minimum requirements of at least 3.93' (100 mm) thickness and 3,000 PSI compressive strength. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation.
| Katool 4H110 Heavy-Duty Four-Post Car Lift Specifications | |
| Manufacturer | Katool |
| Lifting Capacity | 11,000 lbs (4,990 kg) |
| Max. Lifting Height | 84.25' (2,140 mm) |
| Max. Underneath Clearance | 78.7' (2,000 mm) |
| Lifting Time | 83 seconds up / 40 seconds down |
| Lock Positions | 14 positions, every 4.7' |
| Height of Posts | 94.88' (2,410 mm) |
| Width Overall | 126' (3,200 mm) |
| Width Inside Columns | 112.81' (2,865 mm) |
| Width Inside Runways | 45' (1,143 mm) |
| Width of Runways | 18.7' (475 mm) |
| Length Overall (with ramps) | 229.73' (5,835 mm) |
| Length (without ramps) | 197.5' (5,016 mm) |
| Runway Length | 181.9' (4,620 mm) |
| Min. Runway Height | 6.2' (157 mm) |
| Included Accessories | Two drip trays + one jack tray (included free) |
| Motor | 110V/60Hz/3HP or 220V/60Hz/3HP |
| Electrical Requirements | 10-gauge wire with a 30-amp breaker is recommended. However, a dedicated 20-amp circuit will also work as long as the lift is the only equipment connected to it. |
| Net Weight | 2,116 lbs (960 kg) |
| Shipping Dimensions | 195' L x 26' W x 32' H -- 2,119 lbs |
| Warranty | 1 Year limited parts & defects | 3 Year structural |
Katool KT-4H110 Frequently Asked Questions
Will a full-size truck fit on the KT-4H110?
Yes -- and not just half-tons. With a true 11,000 lb rating, the KT-4H110 handles 3/4-ton and even 1-ton pickups: an F-350, RAM 3500, or Silverado 3500 diesel crew cab curbs around 7,000-8,600 lbs, well inside capacity. The 181.9' runways take extended cabs and long beds without trouble. Two fitment checks on the biggest trucks: dually rear wheels can run wider than the 18.7' runways, and a crew-cab long-bed wheelbase is worth measuring against runway length before ordering. For duallys, flatbeds, or commercial upfits, the 15,000 lb Katool KT-4H150 is the better fit.
Does the KT-4H110 really run on 110V power?
Yes -- the standard model uses 110V power. See Electrical Requirements above for setup guidance and the dedicated-circuit exception. Have a qualified electrician verify the setup for your specific power unit before installation. Prefer 220V? The 220V motor is a free upgrade at checkout.
Do I need to bolt the KT-4H110 to my garage floor?
No. It's engineered for free-standing use -- no anchor bolts are required for normal operation, which makes DIY installation far simpler. Your concrete still matters: the slab must be at least 3.93' (100 mm) thick at 3,000+ PSI. Verify your slab before ordering.
How does delivery work for this lift?
The lift ships as freight on a roughly 2,100 lb pallet. You can choose curbside freight delivery or free pickup at one of 19 warehouse locations nationwide -- enter your ZIP above to find the closest one. Most orders arrive within 1-2 weeks.
Can I add a rolling jack for brakes and tire work?
Yes. The Katool KT-RJ50 rolling jack rides between the runways and lifts the wheels free for brakes, tires, and suspension work -- it turns this storage lift into a full service lift.
Is the Katool KT-4H110 worth it?
It's one of our best-selling lifts, rated 4.8+ stars by verified buyers -- see the Reviews tab above for their install stories and photos. For a deeper, warts-and-all look at the brand, read our Are Katool Car Lifts Worth It? breakdown on Garage Equip Pro Guides.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
