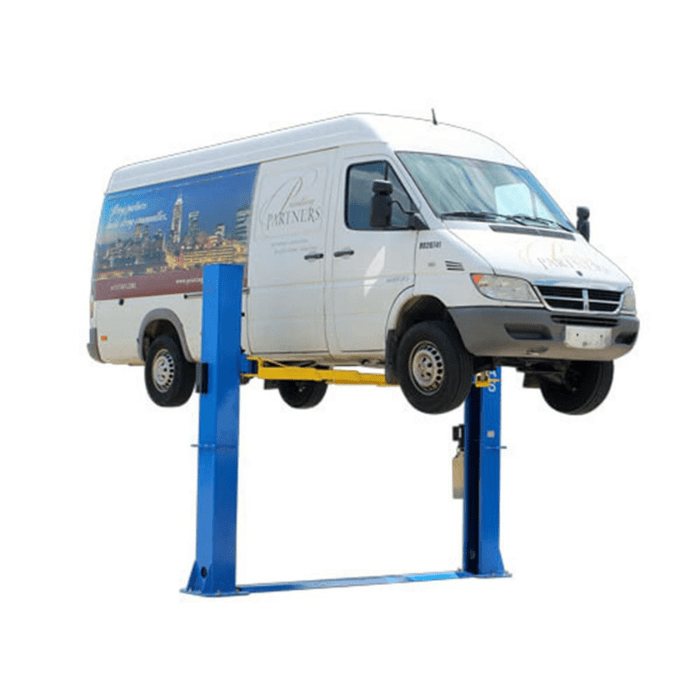

Atlas Commercial Grade Baseplate 2-Post Lift - 10,000 lb Capacity | BP10000X
Powerful Lifting in Tight Spaces. The Atlas BP10000X Baseplate Lift Delivers 10K Capacity Under 11β
Shopping for a two post car lift can be frustrating. Especially if your shop has a lower ceiling but still needs to handle heavy vehicles. Many 2 post car lifts either lack the lifting power you need or require more overhead clearance than your space allows. Thatβs where the Atlas BP10000X comes in. This commercial-grade lift is purpose-built for shops with ceiling heights under 11 feet. It stands 111 7/8' tall and asks for roughly 117' (9'9') of clearance, all while providing a solid 10,000 lb. Lifting capacity for everything from Smart Cars to one-ton dually trucks. Commercial-grade 10K baseplate lifts is a specific niche. Most 10K lifts default to overhead configuration for engineering simplicity. Atlas's BP10000X delivers commercial-grade 10K capability in baseplate format.
What sets this lift apart is its baseplate design, which offers a clear open-top and a total height of just 111 7/8β. Ideal for garages with tight vertical space. The Super-Symmetric arm setup gives you the flexibility to lift a wide variety of vehicle types with minimal fuss, and the single-point lock release simplifies operation by unlocking both columns at once. The oversized columns feature welded support gussets for added strength and long-term durability. This is a serious piece of shop equipment thatβs meant for real-world use. Not just showroom specs. 10,000 lb capacity handles crew cabs, lifted trucks, and most light commercial vehicles. Baseplate routing fits residential and low-ceiling commercial bays without modification.
The Atlas BP10000X two post car lift uses dual hydraulic chain-drive cylinders built to ANSI standards, ensuring smooth lifting and safety during daily use. It also includes automatic arm restraints, a powder-coated finish, and an included 12-piece truck adapter set. So youβre ready for just about any vehicle, right out of the box. With a generous drive-thru clearance of 101 1/4β and overall floor width of over 139β, this lift doesnβt just fit your space. It works hard in it. For shops with limited ceiling height needing true 10K commercial capability, the BP10000X is one of the few baseplate options that delivers commercial-grade structural rating.
Need more height or arm reach? Weβve got larger 2 Post Lifts that may fit better.
Benefits of the Atlas BP10000X Auto Lift
Key Features of the Atlas BP10000X 10,000lb Baseplate Two-Post Lift You'll Love:
β’ Low Ceiling Compatibility: With an overall height of just 111 7/8', this lift is a go-to solution for shops with ceiling height restrictions. It allows you to lift full-size trucks in tighter garages without compromising safety or clearance.
β’ Super-Symmetric Arm Design: The Super-Symmetric arms allow greater flexibility in vehicle positioning. Whether you're working on compact sedans or long-wheelbase pickups, the arm configuration adjusts quickly and safely.
β’ Single-Point Lock Release: Simplify your workflow with a single-point lock release that disengages both columns at once. This makes it quicker and easier to lower the vehicle safely without dealing with two separate release points.
β’ Heavy-Duty Hydraulic Cylinders: Dual chain-driven hydraulic cylinders meet ANSI standards and provide smooth, reliable lifting every time. Theyβre built for longevity and consistent performance under demanding daily use.
β’ Welded Support Gussets: Both columns feature welded gussets to enhance strength and reduce flex. This reinforcement improves stability. Especially when lifting heavier vehicles like vans and dually trucks.
β’ Included Truck Adapter Set: The lift includes a 12-piece truck adapter kit at no extra cost, allowing you to reach higher lift points on larger frames. These adapters help keep your lifting operation safe and versatile.
Minimum Garage Requirements
✓ Ceiling Height: At least 117' (9'9') recommended ✓ Footprint: 139-1/8' overall floor width (11'7-1/8') ✓ Concrete Thickness: Minimum 4' (101.6 mm) ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 220V single phase, 30 amp breaker recommended ✓ Overall Lift Height: 111-7/8' (9'3-7/8') (measure before ordering)
✓ Ceiling Height: At least 117' (9'9') recommended
✓ Footprint: 139-1/8' overall floor width (11'7-1/8')
✓ Concrete Thickness: Minimum 4' (101.6 mm)
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 220V single phase, 30 amp breaker recommended
✓ Overall Lift Height: 111-7/8' (9'3-7/8') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Atlas BP10000X Baseplate Two-Post Car Lift Specifications | |
| Manufacturer | Atlas |
| Lift Type | Baseplate 2-Post |
| Capacity | 10,000 lbs |
| Lift Height (w/o Adapters) | 77 3/8' |
| Lift Height (w/ Adapters) | 86 3/8' |
| Overall Height | 111 7/8' |
| Overall Floor Width | 139 1/8' |
| Outside Column to Column | 134 1/2' |
| Drive-Thru Clearance | 101 1/4' |
| Inside Column Height | 112 1/4' |
| Minimum Arm Height | 4' |
| Column Size | 9 1/2' x 11' |
| Motor / Electrical | 220V single phase, 30 amp breaker recommended |
| Oil Requirement | 3-5 gallons AW32 or AW46 (Not Included) |
| Adapter Heights | (4 each) 2', 3', 6' |
| Finish | Powder Coat |
| Shipping Weight | 1,640 lbs |
| Warranty | 5-Year Structural, 2-Year Hydraulic (Parts Only) |
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
