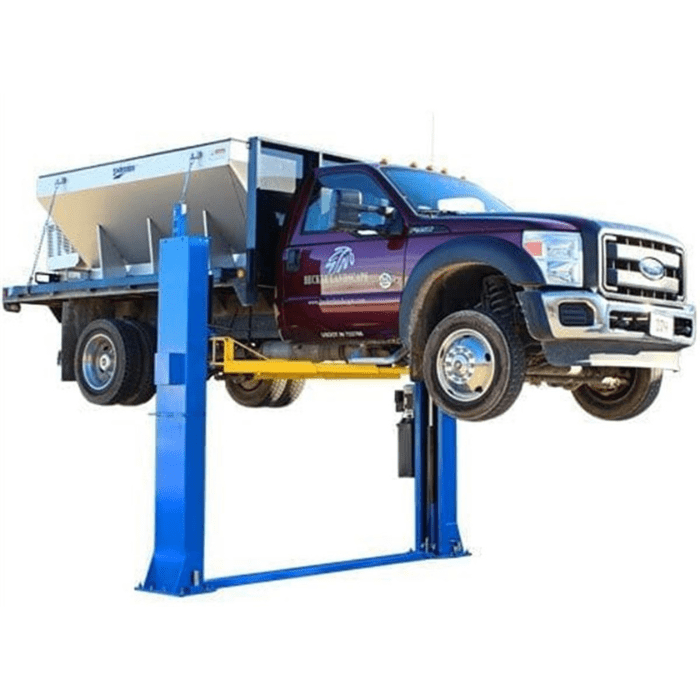

Atlas Commercial Grade Baseplate 2-Post Lift - 12,000 lb Capacity | BP12000X

Shopping for a heavy-duty two post car lift can be a challenge when ceiling space is limited, especially if you're working on larger vehicles like trucks, vans, or service vehicles. Many 2-post car lifts either lack the strength to handle heavier loads or require more vertical clearance than your garage allows. That’s where the Atlas BP12000X 12,000 lb Baseplate 2 Post Lift steps in. It delivers a rock-solid lifting solution without demanding a tall ceiling, making it an ideal choice for low-bay shops, dealerships, or repair garages that still need full commercial-grade performance. 12K baseplate options are even rarer than 10K. Most manufacturers won't engineer 12K through floor-routed hydraulics. Atlas's BP12000X is one of the few that delivers true 12K capability in baseplate configuration.

What makes this two post car lift stand out is its sheer strength and flexibility. With a 12,000 lb. lifting capacity and adjustable width, it’s capable of raising diesel trucks, long-wheelbase vans, and utility vehicles with ease. The baseplate design keeps the lift structure grounded and avoids the need for overhead crossbars, while the symmetric 3-stage arms give you balanced lifting for heavier frames. You’ll also appreciate the 77 ½” maximum lift height (88 ½” with adapters), 103 ⅝” or 109” drive-through clearance, and powder-coated steel for added durability. 12,000 lb capacity handles dually pickups, crew cabs, and most light commercial vehicles. At 122 ½” overall the baseplate design fits commercial bays where overhead 12K lifts won't install due to ceiling clearance.

Whether you're outfitting a busy repair shop or upgrading your fleet maintenance garage, the Atlas BP12000X combines power, reliability, and safety. It’s built with oversized columns, dual chain-over hydraulic cylinders, and automatic arm restraints. Plus, it comes with a 12-piece truck adapter set and all mounting hardware included. Check your floor before you order: a 12,000 lb lift on two baseplate columns puts real load into the slab, and this model calls for a minimum 6' of 3,000 PSI concrete. That is deeper than the 4' a typical bay is poured at, and deeper than several smaller Atlas 2-post models need. If you’ve been hunting for a 2 post car lift that works in real-world, space-constrained environments without sacrificing lift capacity, this one checks all the boxes. For commercial shops with limited overhead clearance handling 12K-class vehicles, the BP12000X fills a niche the market mostly ignores.
