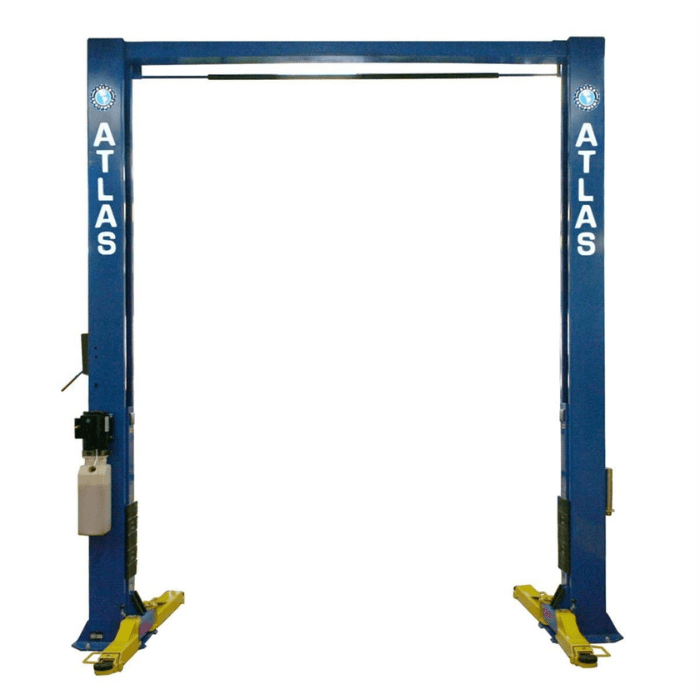

Atlas Commercial Grade Extra Tall 2-Post Lift - 10,000 lb Capacity | OHX10000X
Built for Big Trucks and Big Spaces. The OHX10000X Offers Extra-Tall Lifting and Wide Drive-Through Access
Shopping for a two post car lift can be overwhelming, especially when you're working with taller vehicles or limited shop space. Most 2-post car lifts either lack the clearance you need or don't provide enough drive-through room for bigger trucks. The Atlas OHX10000X was built to solve both problems. Itβs a commercial-grade, extra-tall lift with a 10,000 lb. Capacity. Perfect for diesel duallys, ladder trucks, and long wheelbase vans. Whether you're running a busy repair shop or outfitting your own garage, this lift gives you both the strength and space flexibility needed to handle real work. Extra-tall 10K overhead 2-post lifts is the right tool for shops with high commercial bay ceilings or for fleets handling lifted trucks and tall SUVs. Atlas's OHX10000X delivers extra column height at the commercial 10K capacity tier.
What sets this 2 post car lift apart is its overall height of 152' and generous drive-through clearance of nearly 9 feet. You get plenty of room to raise large vehicles and move around without restriction. Its extra-wide column spacing (136') and longer cylinders allow for a higher lift point than most competitors. Ideal if you're over 6 feet tall and want more room to work under the vehicle. With the included 12-piece truck adapter set and dual direct-drive cylinders, you're getting an efficient, well-supported lift right out of the box. 10,000 lb capacity at the extra-tall column geometry covers crew cabs, lifted trucks, and most light commercial vehicles. Built for commercial bays with 13+ foot ceilings.
The OHX10000X also makes safety and usability a priority. From its automatic arm restraints and padded shut-off bar to the single-point lock release, every detail is geared toward a smoother experience. The powder coat finish resists wear, while welded support gussets and heavy-duty columns provide unmatched strength. Youβll need at least 13'2' of ceiling height to install this beast. But once itβs in, itβll be the hardest-working piece of equipment in your shop. For commercial shops handling lifted or tall commercial vehicles at the 10K capacity tier, the OHX10000X brings the extra column height standard 10K overhead lifts can't match.
Benefits of the Atlas OHX10000X Auto Lift
Key Features of the Atlas OHX10000X 10,000lb Overhead Two-Post Lift You'll Love:
β’ Extra Tall Column Design: With a total height of 152', this lift accommodates shops with higher ceilings and allows you to fully elevate large trucks and vans. The extended height gives technicians more room to work safely and comfortably underneath the vehicle.
β’ Wide Drive-Thru Clearance: The 106 7/8' drive-thru clearance and 136' outer column spacing make it easy to move wide vehicles through without squeezing. This feature is ideal for long wheelbase trucks, diesel duallys, and full-size vans.
β’ Dual Direct-Drive Cylinders: Built with dual direct-drive hydraulic cylinders, this lift provides smoother operation and consistent performance. These cylinders reduce maintenance needs and increase lifting efficiency compared to chain-driven alternatives.
β’ Automatic Arm Restraints: As soon as the arms engage, the automatic arm restraints lock into place, adding another layer of safety and stability. This ensures that once a vehicle is lifted, the arms wonβt shift under load.
β’ Single-Piece Column Construction: The 12' 8' formed column is made from a single piece of steel, which increases the structural integrity of the lift. Fewer joints mean fewer weak points and a longer-lasting, more reliable lift.
β’ 12-Piece Truck Adapter Set Included: This lift comes with a complete adapter kit at no additional cost. Whether you're working on lifted pickups or fleet vehicles, these adapters make sure you reach those tougher lift points safely.
Minimum Garage Requirements
✓ Ceiling Height: At least 158' (13'2') recommended ✓ Footprint: 144-3/8' overall floor width (12'0-3/8') ✓ Concrete Thickness: Minimum 6' (152.4 mm), with at least 4' of slab extending from the anchor points ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 220V Single Phase / 30A Breaker Recommended ✓ Overall Lift Height: 152' (12'8') (measure before ordering)
✓ Ceiling Height: At least 158' (13'2') recommended
✓ Footprint: 144-3/8' overall floor width (12'0-3/8')
✓ Concrete Thickness: Minimum 6' (152.4 mm), with at least 4' of slab extending from the anchor points
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 220V Single Phase / 30A Breaker Recommended
✓ Overall Lift Height: 152' (12'8') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.
Atlas OHX10000X Commercial-Grade Two-Post Car Lift Specifications | |
| Manufacturer | Atlas |
| Lift Type | Extra Tall 2-Post Lift |
| Capacity | 10,000 lbs |
| Overall Height | 152' (12' 8') |
| Overall Floor Width | 144 3/8' (12' 3/8') |
| Outside Column to Column | 136' (11' 4') |
| Drive-Thru Clearance | 106 7/8' (8' 10 7/8') |
| Maximum Lift Height (w/o Adapters) | 74 3/4' |
| Maximum Lift Height (w/ Adapters) | 85 3/4' |
| Minimum Arm Height | 4 1/2' |
| Inside Column Height | 118 1/4' (9' 10 1/4') |
| Column Size | 9 1/8' x 11' |
| Motor / Electrical Requirement | 220V Single Phase / 30A Breaker Recommended |
| Oil Requirement | 3-5 Gallons AW32 or AW46 (Not Included) |
| Adapter Heights | (4 each) 2', 3', 6' |
| Finish | Powder Coat |
| Shipping Weight | 1,665 lbs |
| Warranty | 5-Year Structural, 2-Year Hydraulic (Parts Only) |
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
