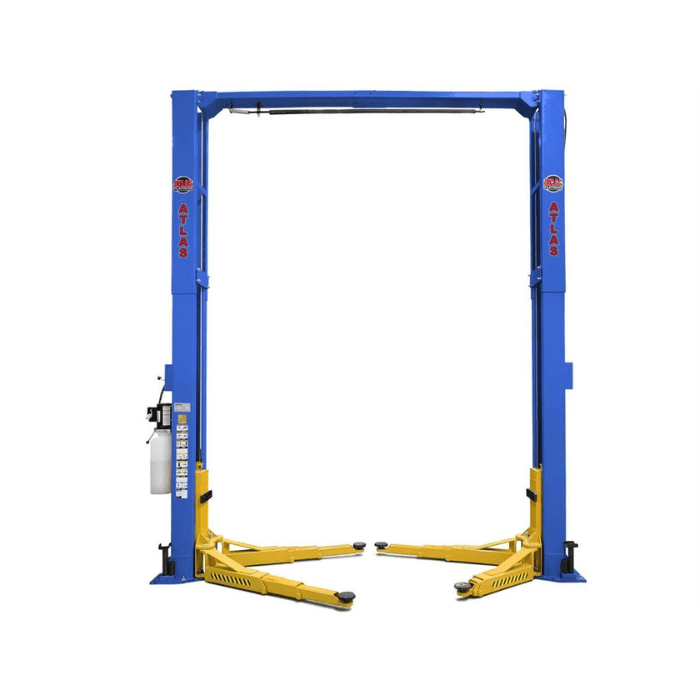

Atlas Platinum ALI Certified Commercial Grade Overhead 2-Post Lift - 12,000 lb Capacity | PVL12
ALI Certified Power. The Atlas PVL12 2-Post Lift Handles 12K Loads with Commercial-Grade Strength
Shopping for a two post car lift that checks all the boxes. certified, commercial-grade, and built to last. Can be a serious challenge. Many lifts aren’t tall enough, wide enough, or strong enough to handle today’s larger trucks and vans. If you're running a professional shop, you need equipment that delivers dependable lifting power, clean operation, and safety every single day. That's exactly what the Atlas Platinum PVL12 brings to the table. Atlas's Platinum tier represents the company's premium ALI-certified line. The PVL12 brings Platinum-grade ALI certification into the 12K commercial 2-post overhead category.
The Atlas Platinum PVL12 is a heavy-duty, ALI Certified two post car lift built for demanding commercial use. With a 12,000 lb capacity, it's capable of lifting long wheelbase trucks, vans, and passenger vehicles with confidence. Its adjustable overall height (165' or 177') makes it a go-to choice for tall commercial vans or high-roof box trucks. The 165' build needs about 171' of ceiling; the 177' build needs about 183', so pick the configuration your bay can actually take. It also anchors into a minimum 160 mm (about 6.3') slab at 3,000 PSI, more than a lighter 2-post asks for. Plus, the extra-wide design. Spanning over 12 feet. Offers comfortable clearance for wider vehicles or those with bulky side mirrors. The 3-stage symmetric arms ensure balanced lifting across different vehicle types, and the low 4.5” minimum pad height keeps your workflow flexible. 12,000 lb structural rating with full ALI certification covers crew cabs, dually pickups, and most light commercial vehicles. Built for daily commercial cycling under sustained loads.
What really sets this lift apart is the premium ALLY power unit. It’s MET-certified for electrical compliance in the US and Canada, and it's engineered for consistent torque, minimal heat generation, and long-term durability. Throw in the powder-coated finish, thick rubber door guards, padded shut-off bar, and an included 8-piece truck adapter kit, and you’ve got a shop-ready workhorse with premium build quality and unmatched peace of mind. For commercial shops handling 12K-class fleet service who need documented ALI safety compliance, the PVL12 brings premium-tier validation into the commercial price band.
Benefits of the Atlas PVL12 Auto Lift
Key Features of the Atlas PVL12 12,000lb Overhead Two-Post Lift You'll Love:
• ALI Certification with Commercial-Grade Build: The PVL12 is ALI Certified, meeting the gold standard for safety and performance in two post car lifts. Its heavy-duty frame and commercial-ready specs ensure you’re investing in equipment built to handle daily abuse in pro shops.
• 12,000 lb Capacity for Trucks & Vans: Whether you’re servicing a fleet of long wheelbase trucks or heavy SUVs, this 2 post car lift won’t flinch. It gives you serious lifting power while remaining stable and reliable under full load. Plan on a minimum 160 mm (about 6.3') slab at 3,000 PSI to anchor it.
• Adjustable Height for Tall Vehicles: Choose between a 165” or 177” overall height to match your shop’s ceiling and work on box trucks, tall vans, or lifted vehicles without hitting clearance issues. Plan on roughly 171” of ceiling for the 165” build and 183” for the 177” build. That flexibility adds long-term value as your vehicle mix grows.
• 3-Stage Symmetric Arms: These arms are made to adapt. They offer optimal reach for vehicles of varying lengths, helping maintain balance and secure lifting. Whether you’re under a pickup or a sedan.
• Premium ALLY Powerunit: Unlike generic motors, the ALLY power unit features enhanced windings, heavier-duty armatures, and electrical certification for the US and Canada. That means better torque, cooler operation, and longer service life.
• Built-In Safety Systems: From the padded shut-off bar to automatic arm restraints and thick rubber door guards, this lift is loaded with protective features that prevent damage and keep your crew safe.
Minimum Garage Requirements
✓ Ceiling Height: At least 171' (14' 3') for the 165' build, 183' (15' 3') for the 177' build ✓ Footprint: 150 3/8' overall floor width (12' 6 3/8') ✓ Concrete Thickness: Minimum 160 mm (about 6.3'), with at least 1.5 m of slab extending from the anchor points ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 220V Single Phase, 30A Breaker Recommended ✓ Overall Lift Height: 165' (13' 9') or 177' (14' 9') (measure before ordering)
✓ Ceiling Height: At least 171' (14' 3') for the 165' build, 183' (15' 3') for the 177' build
✓ Footprint: 150 3/8' overall floor width (12' 6 3/8')
✓ Concrete Thickness: Minimum 160 mm (about 6.3'), with at least 1.5 m of slab extending from the anchor points
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 220V Single Phase, 30A Breaker Recommended
✓ Overall Lift Height: 165' (13' 9') or 177' (14' 9') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. The Atlas PVL12 manual requires 160 mm (about 6.3 inches) of concrete at 3,000 PSI. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings, and this model is built in two overall heights. Confirm which configuration your ceiling can take before ordering.
Atlas PVL12 ALI Certified Commercial-Grade Two-Post Vehicle Lift Specifications | |
| Manufacturer | Atlas |
| ALI Certified | Yes |
| Lift Type | Overhead 2-Post |
| Capacity | 12,000 lbs |
| Concrete Requirement | Minimum 160 mm (about 6.3') at 3,000 PSI |
| Overall Floor Width | 150 3/8' (12' 6 3/8') |
| Outside Column to Column | 139 1/8' (11' 7 1/8') |
| Drive-Thru Clearance | 109 5/8' (9' 1 5/8') |
| Adjustable Overall Height | 165' or 177' |
| Inside Column Height | 122 5/8' |
| Maximum Lift Height (w/o Adapters) | 73 5/8' |
| Maximum Lift Height (w/ Adapters) | 85 1/2' |
| Minimum Arm Height | 4 1/2' |
| Column Size | 7 1/2' x 14 1/2' |
| Arm Type | 3-Stage Symmetric Arms |
| Power Requirement | 220V Single Phase, 30A Breaker Recommended |
| Oil Requirement | 3-5 Gallons AW32 or AW46 (Not Included) |
| Adapter Heights | 4 Each. 4.5', 8.5' |
| Finish | Powder Coat |
| Door Guards | Thick Rubber on Carriage |
| Power Unit | Premium ALLY Powerunit (MET-Certified) |
| Shut-Off Bar | Yes, Padded |
| Lock Release | Single Point |
| Arm Restraints | Automatic |
| Adapter Kit | 8-Piece Truck Adapter Set Included |
| Mounting Hardware | Included |
| Shipping Weight | 2,425 lbs |
| Warranty | 5-Year Structural, 2-Year Hydraulic, 2-Year Powerunit |
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
