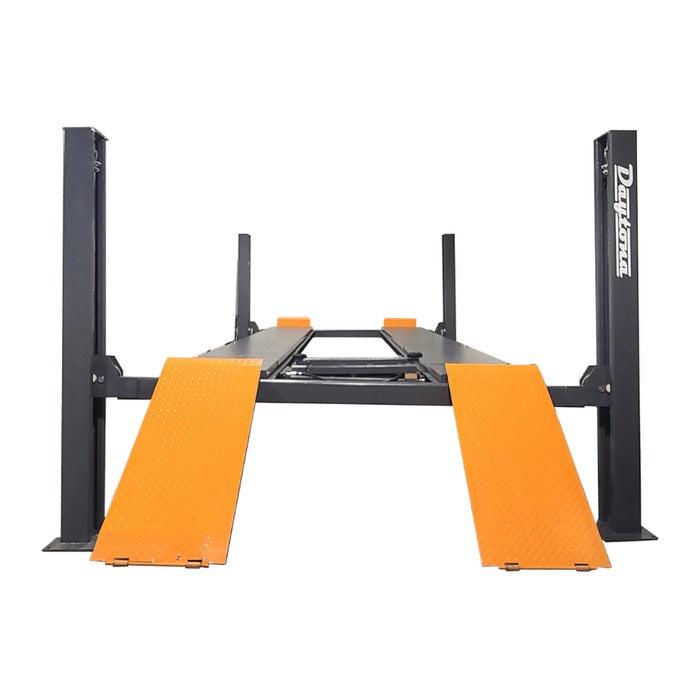

Daytona LFPA24 24,000 lb Four Post Alignment Lift

The lift itself occupies 330.5' by 155.1', which is about 27'-6' by 12'-11'. Plan on a 30 by 15 foot bay so there is room to walk both sides, open doors, and get the alignment computer positioned. Ceiling height is set by your tallest vehicle plus 66.9' of rise, not by the lift, since a four post rack has nothing overhead.

Yes, both are standard. This is worth checking carefully when you compare quotes, because on a number of competing alignment racks the slip plates, the turntables, or both are priced as accessories. A rack that looks cheaper on the headline can land higher once the alignment hardware is added.

A wheel alignment computer, which is sold separately. Most shops also add a rolling bridge jack so wheels can come off without leaving the rack. Daytona's drawing shows the rolling jack on this lift with its arms spanning 35.4' to 63.0' pad to pad. Call us and we will spec the jack to match.

If your alignment work is cars, pickups, and vans, the LFPA14 covers it and costs considerably less. You want 24,000 when medium duty is in the mix: box trucks, shuttle buses, ambulances, larger chassis cabs, and loaded commercial upfits. The honest test is whether turning that work away is costing you an account rather than a single job.

Daytona does not publish a concrete thickness or strength for this lift, so get the requirement from Daytona in writing before you order. Verifying concrete is the customer's responsibility, and installing on an inadequate slab is genuinely dangerous.

No. It runs on 240V single phase, 4 HP, 15 amps, 60Hz on a dedicated circuit. That is worth knowing at 24,000 lbs, because plenty of equipment in this class assumes three phase service. Have a licensed electrician confirm the circuit and breaker sizing before the installer arrives.

The LFPA24 ships as freight in a 278' x 33' x 65' crate weighing 7,800 lbs. That is close to four tons and over 23 feet long, so this is not a tailgate delivery. You will need a forklift with adequate capacity and clear access on site. Talk to a lift specialist before ordering so the delivery is planned rather than improvised.

Five years structural, two years on power units, cylinders, and seal kits, and one year on all other defective parts. Daytona has served shops in the United States and Canada since 1999 and stocks parts in regional warehouses.
