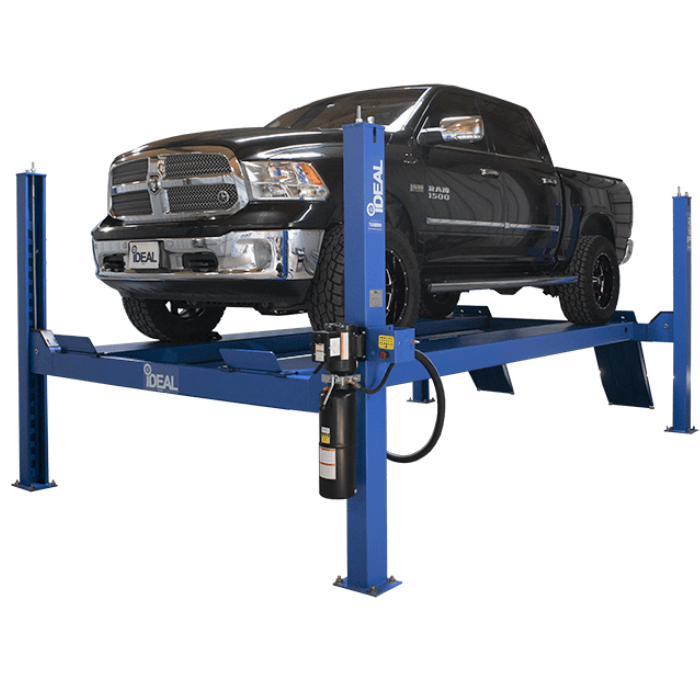

iDEAL Commercial 14,000 lb 4-Post Vehicle Lift | FP14KC-X
Heavy-Duty, High-Clearance Performance: iDEAL FP14KC-X 14,000 lb 4-Post Vehicle Lift for Pro Shops
Finding a reliable 4 post lift for large vehicles is a constant struggle for busy auto shops. Many lifts on the market either max out at lower capacities or lack the extended clearance needed to service todayβs heavy-duty trucks, SUVs, and fleet vehicles. On top of that, durability and safety are often overlooked. Leaving shop owners dealing with premature wear, frustrating breakdowns, and costly downtime. Thatβs why investing in a heavy-duty solution like the iDEAL FP14KC-X is a smart long-term move. Commercial 14K 4-post lifts at this capacity tier typically cost 30-50% more for the same structural rating. The FP14KC-X brings commercial-tier capability into a price band independent shops can afford, without compromising the structural rating commercial work requires.
The iDEAL Commercial 14,000 lb 4-Post Vehicle Lift delivers unmatched strength and performance for professional service shops. With a full 14,000 lb lifting capacity, extended rise height of 77-1/2β³, and multiple runway adjustments, itβs built to handle everything from large pickups to utility fleets. The liftβs wide stance provides stability, while the 69-5/8β³ under-runway clearance gives technicians the space they need for tools, transmission jacks, and complete underbody access. 14,000 lb capacity with reinforced runways and structural columns sized for daily commercial cycling. Drive-thru clearance and runway length accommodate full-size commercial vehicles without overhang concerns.
Designed for commercial reliability, the FP14KC-X includes premium safety features such as 18 locking positions, a slack cable safety system, and a single-point pneumatic lock release. Finished in a corrosion-resistant powder coat and powered by a certified DURO hydraulic unit, this iDEAL 4 post lift combines safety, strength, and efficiency to keep your shop running at full productivity without compromise. For commercial shops handling crew cabs, dually pickups, work vans, and other 14K-capable vehicles, the FP14KC-X is sized and built for the workload that consumer-tier 14K lifts can't sustain.
Need a different capacity or configuration? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our 2-Post vs 4-Post guide to pick the right style. Questions? Call Support Desk.
Benefits of the iDEAL FP14KC-X Four Post Lift
Key Features of the iDEAL FP14KC-X 4-Post Lift You'll Love:
β’ High Capacity Design: The FP14KC-X is engineered with 14,000 lbs of lifting power, making it ideal for full-size trucks, SUVs, and commercial vehicles. This heavy-duty capacity allows shops to take on a broader range of jobs, boosting revenue and ensuring long-term equipment reliability.
β’ Extended Rise Height: With a max rise height of 77-1/2β³, this lift offers excellent under-vehicle clearance. Technicians benefit from easier maneuverability when using rolling jacks, creepers, or tool carts, leading to faster repairs and more efficient workflow.
β’ Dual Runway Adjustment: Featuring adjustable runway widths of 43β³ or 46β³, the FP14KC-X accommodates a variety of vehicles. From narrow commercial vans to wide-bodied trucks, this feature ensures greater versatility, making the lift a valuable asset for multi-vehicle servicing.
β’ Comprehensive Safety System: The 18 locking positions and slack cable safety devices built into each post provide multiple layers of protection. Combined with the single-point pneumatic lock release, operators can lift and secure vehicles with confidence, reducing risks in high-volume environments.
β’ Certified DURO Hydraulic Power Unit: Equipped with a UL/CSA certified DURO hydraulic system, the FP14KC-X provides dependable lifting power. The inclusion of grease fittings on pulleys and shafts adds another layer of mechanical reliability, keeping maintenance simple and long-term operation smooth.
Minimum Garage Requirements
✓ Ceiling Height: At least 98' (8'2') recommended ✓ Floor Space: 252' L x 131' W (21'0' x 10'11') ✓ Concrete Thickness: Minimum 4-1/4' (108 mm); the manual requires anchoring ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 220V β 20 AMP β 1PH ✓ Post Height: 92' (7'8') (measure before ordering)
✓ Ceiling Height: At least 98' (8'2') recommended
✓ Floor Space: 252' L x 131' W (21'0' x 10'11')
✓ Concrete Thickness: Minimum 4-1/4' (108 mm); the manual requires anchoring
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 220V β 20 AMP β 1PH
✓ Post Height: 92' (7'8') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
iDEAL FP14KC-X 14,000 lb 4-Post Vehicle Lift Specifications | |
| Manufacturer | iDEAL |
| Model | FP14KC-X |
| Capacity | 14,000 lbs. |
| Overall Length (with ramps) | 252-1/2β³ |
| Overall Width (without power unit) | 131-7/8β³ |
| Overall Width (with power unit) | 142β³ |
| Overall Height | 92-1/2β³ |
| Max Rise Height | 77-1/2β³ |
| Min Pad/Runway Height | 7-7/8β³ |
| Width Between Posts | 116-1/4β³ |
| Length Between Posts | 196β³ |
| Width Between Runways | 43β³ or 46β³ (adjustable) |
| Runway Width | 20β³ |
| Max Wheelbase | 182-1/2β³ |
| Ramp Length | 44β³ |
| Max Clearance Under Runway | 69-5/8β³ |
| Drive-Thru Clearance | 96β³ |
| Base Plate | 10-1/2β³ Γ 9β³ |
| Ship Weight | 2,690 lbs. |
| Power Requirement | 220V. 20 AMP. 1PH |
| Minimum Bay Size Recommended | 16β² Γ 25β² |
| Shipping Dimensions | 208'L 27'W 32'H |
| Warranty | 5 Years Structure, 1 Year Parts - Under Normal Use |
iDEAL FP14KC-X Frequently Asked Questions
What vehicles is the FP14KC-X built for?
This is the fleet tier: a 14,000 lb 4 post car lift for 1-ton duallys, utility bodies, ambulances, and loaded work trucks. The 77-1/2' rise and 69-5/8' under-runway clearance give technicians full standing access, and the runways adjust for different track widths.
Can I do wheels-free service on it?
Yes -- pair it with a rolling jack that rides the runways: the iDEAL RAJ-7K-H (7,000 lb) or the heavier RAJ-8K-H (8,000 lb). Either picks the vehicle up by the frame so wheels hang free for brakes, tires, and suspension work.
Can the FP14KC-X do alignments?
It's upgradeable: iDEAL offers an alignment kit, turntable sets, and runway extensions for this lift. But if alignments are part of your daily business, the purpose-built FP14KAC-X ships alignment-ready with slip plates, turntables, and rollback spacers included.
FP14KC-X or FP14KAC-X -- which iDEAL 14K is right?
Same 14,000 lb bones. This FP14KC-X is the general service and storage version -- the better buy if alignments aren't in your service mix. The FP14KAC-X adds the full alignment package. Lighter work? The 12,000 lb Tuxedo FP12K-K costs less.
How much space does it need?
Plan on a bay about 21 feet long and 11 feet wide, with 98' (8'2') of ceiling -- the posts stand 92'. At 252' overall length with ramps, measure your bay before ordering.
Do I need to bolt it to the floor?
The FP14KC-X manual requires anchoring, into concrete at least 4-1/4' thick at 3,000 PSI. Anchor per the manual and verify your slab before ordering.
Is the iDEAL FP14KC-X worth it?
Commercial 14K 4-posts typically cost 30-50% more for the same structural rating -- the FP14KC-X delivers the capacity, a 5-year structural warranty, and a full accessory ecosystem at an independent-shop price. See the Reviews tab above for buyer feedback, and our 2-Post vs 4-Post guide if you're still weighing lift types.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
