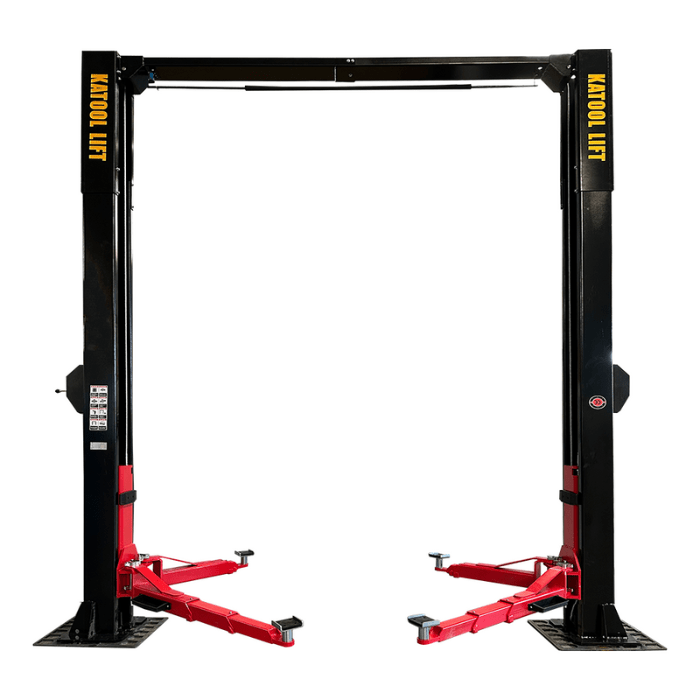

Katool Heavy-Duty Two Post Vehicle Lift (220v) - 15,000 lb Capacity | KT-M150D
Tired of Capacity Limits? Upgrade to the Katool KT-M150D 15,000 lb 2-Post Car Lift for Ultimate Performance
Buying a vehicle lift for garage use shouldn’t feel like a gamble. Too often, folks end up with vehicle car lifts that can’t handle heavy-duty workloads or leave them fumbling with complicated safety systems. You need a solution that tackles capacity concerns head-on. No more underpowered hydraulics stalling halfway up or sketchy cable setups. The Katool KT-M150D offers a whopping 15,000 lb lifting capacity and a low 4.3″ pad height, so you get serious muscle and accessibility all in one package. At 15,000 lbs, the lift market splits between consumer-grade lifts that overstate their structural ratings and commercial-grade lifts that come with commercial-grade pricing. Finding a true-rated 15K at a sane price is rare.
Installation headaches? Say goodbye. This clear-floor, symmetric 2-post design mounts on a standard 6.5″ concrete slab and comes with concealed cable and oil lines for a sleek, hassle-free setup. The dual hydraulic direct-drive cylinders power you up to 72.83″ in under a minute, while the manual safety lock ensures you stay safe every time. And if you ever need to lower the lift manually. Say during a power outage. The emergency manual lowering system has got your back. Heavy-duty steel construction with reinforced base plates and structural columns sized for sustained 15K cycling. The 220V motor delivers consistent power across the full capacity range.
Whether you’re servicing medium to heavy-duty vehicles or optimizing your workshop flow, this vehicle garage lift is built to international CE standards. You’ll appreciate the dual-sided engagement lock, top limit switch, and fully concealed lines. All designed for longevity and peace of mind. With a 10 L oil reservoir compatible with N32/N46 hydraulic oil or Dexron ATF, you’ll spend less time on maintenance and more time on the lift itself. It’s the robust, reliable vehicle lift your garage has been waiting for. For shops handling fleet trucks, ambulances, work vans, and light commercial vehicles, the KT-M150D bridges the gap between hobby-grade 12K lifts and commercial-grade 16K equipment.
Need a different capacity or footprint? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Katool Car Lifts Worth It? breakdown. Questions? Call Support Desk.
Benefits of the Katool KT-M150D Vehicle Lift
Key Features of the Katool KT-M150D 2-Post Lift You'll Love:
• CE-Compliant International Design: This vehicle lift for garage use meets rigorous CE standards, so you know it’s built to last. You get global-grade manufacturing quality, backed by internationally recognized safety protocols. CE certification is the international structural verification commercial shops require for insurance and regulatory compliance.
• Manual Safety Lock with Dual-Sided Engagement: Unlike single-point locks that can fail or slip, this lift’s safety lock engages on both posts simultaneously for a secure hold at any height. Manual dual-sided engagement is mechanically simpler than air-actuated alternatives and gives operators direct control over locking.
• Dual Equalization Steel Cables: Say goodbye to uneven lifts that tilt or bind. These cables ensure both sides rise in perfect sync, keeping your ride level and extending the lift’s lifespan. Dual cables provide redundant equalization. The primary advantage over single-cable systems in heavy-capacity tiers.
• Top Limit Switch for Overhead Protection: The top limit switch automatically cuts power at the max height and alerts you if you’ve hit the top, protecting both your investment and shop fixtures. Top limit switch prevents over-lift damage even at commercial-fleet service heights where ceiling clearance varies.
• Fully Concealed Cable and Oil Lines: All hoses are hidden inside the columns to prevent damage from shop debris and impact, resulting in a cleaner look and less routine maintenance. Concealed routing protects cables and hoses from incidental damage and looks more professional than external runs.
• Emergency Manual Lowering System: Power’s out but the lift’s stuck? Release hydraulic pressure by hand and lower your vehicle safely without electricity. Manual override system safely lowers the lift during power outages. Critical redundancy for commercial environments.
Minimum Garage Requirements
✓ Ceiling Height: At least 182' (15'2') recommended ✓ Footprint: 116' drive-thru x 160' overall (9'8' x 13'4') ✓ Concrete Thickness: Minimum 6.5' (165.1 mm) ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 220 V / 60 Hz / 3 kW / 4 HP (Single Phase) ✓ Overall Lift Height: 176' (14'9') (measure before ordering)
✓ Ceiling Height: At least 182' (15'2') recommended
✓ Footprint: 116' drive-thru x 160' overall (9'8' x 13'4')
✓ Concrete Thickness: Minimum 6.5' (165.1 mm)
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 220 V / 60 Hz / 3 kW / 4 HP (Single Phase)
✓ Overall Lift Height: 176' (14'9') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Katool KT-M150D 15,000 lb 2-Post Car Lift Specifications | |
| Manufacturer | Katool |
| Model | KT-M150D |
| Lifting Capacity | 15,000 lbs (6,800 kg) |
| Max Lifting Height | 72.83″ (1,850 mm) |
| Rise Time | ≤ 50 seconds |
| Lowering Time | ≥ 20 seconds |
| Lift Type | Clear-Floor, Symmetric 2-Post |
| Drive System | Dual Hydraulic Direct-Drive Cylinders |
| Power Requirements | 220 V / 60 Hz / 3 kW / 4 HP (Single Phase) |
| Net Weight | 820 kg (1,808 lbs) |
| Concrete Requirement | Minimum 6.5″ (165 mm) at 3,000 PSI |
| Machine Height | 176.77' |
| Machine Width | 160.59” |
| Drive-Through Clearance | 116.14' |
| Lowest Pad Height | 110 mm (4.3″) |
| Swing Arm | Symmetric Design |
| Pad Details | Screw Lift Pads + Stacking Adapters |
| Safety Lock | Manual Dual-Sided Engagement |
| Cable System | Dual Equalization Steel Cables |
| Limit Switch | Top-Mount Overhead Protection |
| Oil Reservoir Capacity | 10 L |
| Hydraulic Fluid | N32/N46 Oil |
| Emergency Lowering | Manual Backup System Included |
Katool KT-M150D Frequently Asked Questions
What vehicles can the KT-M150D handle?
As a 15,000 lb 2 post lift it covers crew-cab dually pickups, ambulances, work vans, and most fleet vehicles -- the upper end of what any 2-post format serves. Screw lift pads with stacking adapters and a 4.3' minimum pad height reach frame points on everything from low cars to body-on-frame trucks.
Which heavy-duty Katool 2-post is right for me?
This KT-M150D is the top of the range at 15,000 lbs with concealed lines and an emergency manual-lowering backup. The KT-M140XD gives up 1,000 lbs but adds the widest drive-thru in the lineup (133.46'); the 12,000 lb KT-M120 costs meaningfully less. Prefer drive-on loading at this capacity? The KT-4H150 4-post matches the 15,000 lb rating with a rolling jack included.
How much ceiling height do I need?
The overhead beam stands 176.77' (14'9'), so plan on a 15'2' ceiling with clearance for lights and sprinklers. The top limit switch cuts power before tall vehicles or racks can reach the beam.
Does the KT-M150D run on 110V power?
No -- the 4 HP motor needs 220V single-phase on a dedicated circuit. If your garage only has 110V, see our Katool 4 post lifts, several of which offer 110V motors; have a qualified electrician confirm your circuit.
Do I need to bolt it to the floor?
Yes -- and this model has the strictest slab spec in our 2-post lineup: minimum 6.5' (165 mm) of 3,000 PSI concrete. At 15,000 lbs of capacity, verify your floor before anything else.
What happens if power goes out mid-lift?
The emergency manual lowering system releases hydraulic pressure by hand, so you can bring the vehicle down safely without electricity -- redundancy the dual-sided mechanical locks back up at every height. For a commercial bay, that's downtime insurance.
How does freight delivery work?
The lift ships as freight at about 1,808 lbs. You can choose curbside freight delivery or free pickup at one of 19 warehouse locations nationwide -- enter your ZIP above to find the closest one. Most orders arrive within 1-2 weeks.
Is the Katool KT-M150D worth it?
A true-rated 15K 2-post with CE testing, concealed lines, and manual-lowering backup at this price sits thousands under the commercial-brand equivalents. See the Reviews tab above for buyer feedback, and read our Are Katool Car Lifts Worth It? breakdown on Garage Equip Pro Guides.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
