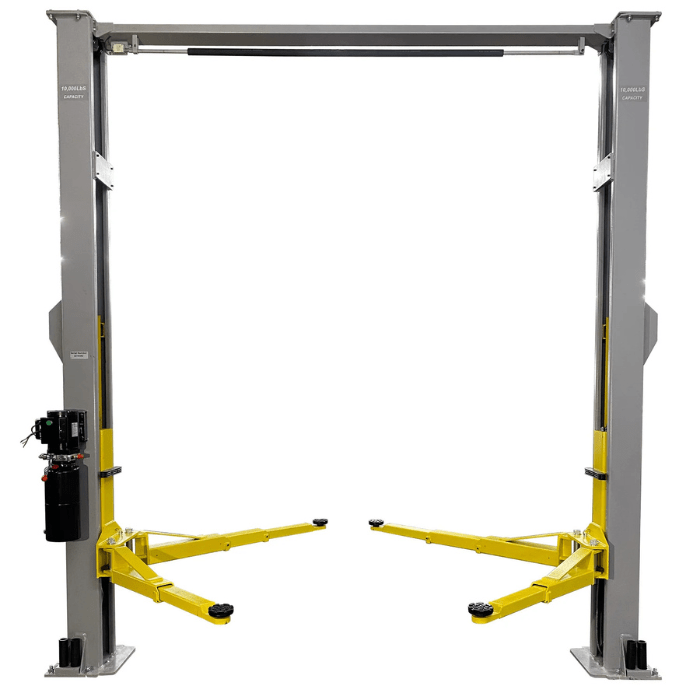

Triumph 10,000 lb Two Post Overhead Auto Lift | NTO-10A
Get More for Less. The Triumph NTO-10A Lift Offers Commercial Performance at a DIY-Friendly Price
Buying a 2 post car lift can feel overwhelming, especially when you're trying to balance reliability, safety, and price. Some lifts are bare-bones, others are overpriced. And too many leave you guessing whether they'll actually hold up in a shop or home garage setting. You want something that's durable, easy to install, and doesn't break the bank. That's especially true above 9,000 lbs, where most options force you to choose between commercial-grade pricing and consumer-grade construction with no real middle ground.
The NTO-10A 10,000 lb Two Post Auto Lift by Triumph takes the stress out of the equation. Built for power, durability, and everyday usability, this lift is packed with premium features you'd typically pay thousands more for elsewhere. From the single-point lock release to the overhead cable management system, every detail is designed to help your workflow, not slow it down. Heavy-duty truck adapters ship standard, three-stage arms handle short and long wheelbases without swapping equipment, and the 3 HP / 220V motor cycles the lift in 40 seconds. All included at a price most competitors charge a la carte.
Whether you're setting up your first shop or upgrading your home garage, the NTO-10A 2 post auto lift gives you commercial-grade performance without the inflated price tag. It's engineered for long-term use with minimal maintenance, so you can focus on the vehicles, not the equipment. It's the smart solution when you want top-tier results without spending a fortune. For shops handling daily volume or weekend wrenchers tackling heavier projects, the NTO-10A is sized to grow with your work, not constrain it.
Want a better fit for your space? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Triumph Lifts Worth It? breakdown. Questions? Call Support Desk.
Benefits of the Triumph NTO-10A Vehicle Lift
Key Features of the Triumph NTO-10A 10,000 lb Two-Post Car Lift You'll Love:
• Single Point Lock Release: Engage and release both safety locks from one location, eliminating the need to walk between columns. Speeds up workflow and enhances efficiency. Perfect for fast-paced shops. Single-point release lets one operator manage the full lift cycle without coordinating with a helper.
• Three-Stage Arms: Extended reach and multi-stage adjustment make it easy to lift compact cars and long pickup trucks. Enjoy better positioning flexibility without extra tools or adapters. Three-stage arm geometry adjusts for short and long wheelbases without swapping equipment between vehicle types.
• Overhead Bar for Cables and Hoses: Keeps cables and hydraulics routed overhead, freeing up floor space and eliminating tripping hazards. Creates a safer, cleaner, and more functional work environment. Overhead routing keeps cables and hydraulic hoses out of the working area, leaving the floor between posts trip-free.
• 220V, 3 HP Motor: Delivers consistent power and reliable performance for lifting everything from sedans to trucks with ease. Built for durability and day-in, day-out operation. The 220V 3HP motor delivers consistent power at the full 10K capacity range, not just under empty cycles.
• Fast 40-Second Lift Time: Gets vehicles up in just 40 seconds, reducing downtime and boosting shop productivity. Faster cycles mean more vehicles serviced in less time. Quick cycle time compounds across a busy day, with seconds per vehicle adding up to real productivity gains.
• Truck Adapters Included: Comes standard with heavy-duty adapters for lifting trucks and vehicles with frame variations. No need for additional purchases. Heavy-duty adapters handle frame variations on full-size trucks and SUVs without forcing improvised contact points.
Minimum Garage Requirements
✓ Ceiling Height: At least 151' (12'7') recommended ✓ Footprint: 96' drive-thru x 133' overall (8'0' x 11'1') ✓ Concrete Thickness: Minimum 4' (the manual lists 'Thickness 4 - 6 inches') ✓ Concrete Strength: Minimum 4,000 PSI compressive ✓ Electrical: 220V ✓ Overall Lift Height: 145' (12'1') (measure before ordering)
✓ Ceiling Height: At least 151' (12'7') recommended
✓ Footprint: 96' drive-thru x 133' overall (8'0' x 11'1')
✓ Concrete Thickness: Minimum 4' (the manual lists 'Thickness 4 - 6 inches')
✓ Concrete Strength: Minimum 4,000 PSI compressive
✓ Electrical: 220V
✓ Overall Lift Height: 145' (12'1') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.
Triumph NTO-10A Two-Post Auto Lift Specifications | |
| Manufacturer | Triumph |
| Lift Capacity | 10,000 lbs |
| Overall Height | 145' |
| Overall Width | 133' |
| Distance Between Posts | 107' |
| Drive Thru Width | 96' |
| Lifting Height | 72' |
| Lowered Height | 4.5' |
| Base Plate Size | 18' x 17' |
| Truck Adapters | Included |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Lift Time | 40 Seconds |
| Voltage | 220V |
| Motor Power | 3 HP |
| Concrete Requirement | 4' Slab @ 4,000 PSI |
| Style | Overhead |
| Includes | Power Unit & Mounting Hardware |
Triumph NTO-10A Frequently Asked Questions
Will my truck fit on the NTO-10A?
Yes -- the 10,000 lb rating covers every half-ton pickup and full-size SUV with margin, with symmetric arms and included truck adapters for frame lift points. For 3/4-ton and heavier work, step up to the NTO-11A.
How much ceiling height do I need?
The overhead beam stands 145' (12'1'), so plan on a 12.5-foot ceiling. The electric safety cutoff stops the carriage before a roof or rack can contact the beam -- clear-floor convenience without the ceiling anxiety.
Which Triumph 2-post is right for me?
This NTO-10A is the mid-range workhorse -- 10,000 lbs, single-point release, clear floor. The NTO-9AE saves money and runs on 110V at 9,000 lbs; the NTO-11A adds capacity and a wider 108' drive-thru; and the floor-plate NT-11 carries 11,000 lbs under lower ceilings.
Does the NTO-10A run on 110V power?
No -- it needs 220V single-phase on a dedicated circuit. If you only have 110V, the Triumph NTO-9AE runs the same overhead format on household power at 9,000 lbs.
Do I need to bolt it to the floor?
Yes -- every 2-post must be anchored, and the mounting hardware ships with the lift. Your slab needs to be at least a 4' pour at 4,000 PSI compressive strength (the manual lists thickness as 4 - 6 inches). Verify before ordering.
Should I get a 2-post or a 4-post lift?
Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. Four-posts win for storage and drive-on ease. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
How does freight delivery work?
The lift ships as freight. You can choose curbside freight delivery or free pickup at one of Triumph's 3 warehouse locations -- enter your ZIP above to see whether one is close to you. Most orders arrive within 1-2 weeks.
Is the Triumph NTO-10A worth it?
Single-point release and an electric safety cutoff at this price usually belong to lifts costing hundreds more -- it's the balanced pick of the lineup. See the Reviews tab above for buyer feedback, and read our Are Triumph Lifts Worth It? breakdown on Garage Equip Pro Guides.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
