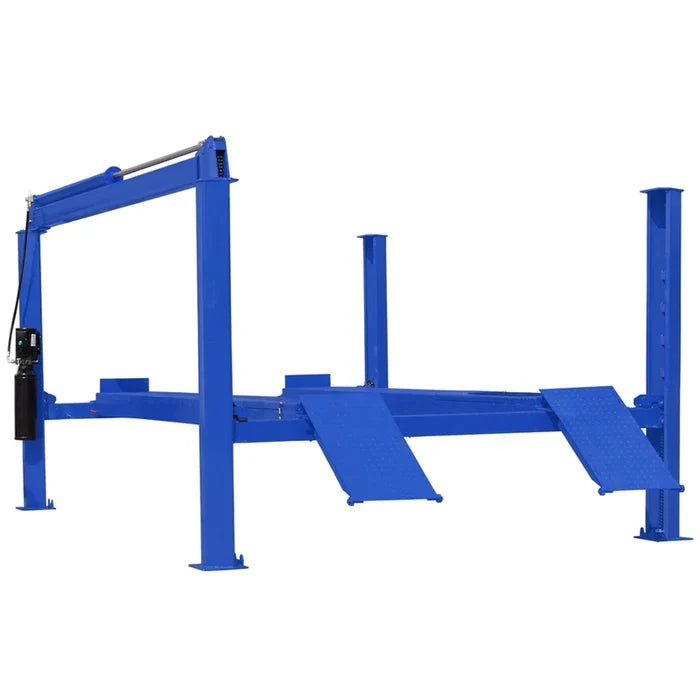

Tuxedo Commercial 14,000 lb Four Post Lift - Chain Driven | FP14K
Power, Access, Safety: Tuxedo FP14K 14,000 lb 4-Post Lift for Busy Shops
Finding a reliable 4 post lift that can handle both everyday cars and heavy-duty commercial vehicles isnβt easy. Many shops deal with lifts that max out too early, forcing them to turn away trucks and larger SUVs. Others compromise on workspace, leaving technicians frustrated with poor clearance and cramped conditions. These problems slow down productivity, limit profitability, and make servicing larger vehicles a challenge. Chain-driven 14K commercial 4-post lifts use chain equalization instead of cable systems, which is the structural simplification commercial shops want for long-term mechanical reliability. Chains last longer than cables under heavy commercial cycling.
The Tuxedo FP14K 4 post lift solves these issues with serious lifting power and smart design. With a 14,000 lb capacity, reinforced steel posts, and a wide stance, itβs built to handle everything from passenger cars to full-size work trucks. A clear-floor design provides open access underneath, while a generous 60β³ under-track clearance gives technicians the room they need to move freely, use transmission jacks, or roll tool carts without obstruction. 14,000 lb structural rating with chain-driven equalization handles crew cabs, dually pickups, work vans, and most light commercial vehicles. Reinforced runways and base plates rated for daily commercial cycling.
Designed with both performance and safety in mind, this 14000 lb 4 post lift includes automatic safety locks, adjustable runways, and extended 30β³ ramps that make drive-on and drive-off simple. Whether youβre running a busy repair shop, servicing fleets, or looking for dependable storage, the Tuxedo FP14K 4 post car lift offers the strength, stability, and convenience to keep your shop moving at full speed. For commercial shops where lift uptime matters more than headline capacity numbers, the FP14K's chain-driven design is the long-term-reliability choice in the 14K commercial category.
Benefits of the Tuxedo FP14K 4-Post Lift
Key Features of the Tuxedo FP14K 4-Post Lift You'll Love:
β’ 14,000 lb Capacity: This heavy-duty lift gives you the strength to handle commercial vehicles, large trucks, and SUVs without worry. Its high capacity ensures your shop isnβt limited to smaller cars, opening the door to more profitable service opportunities. Youβll gain confidence knowing the FP14K wonβt strain under heavy loads.
β’ Clear Floor Design: Unlike lifts with obstructions, the FP14K uses a clear-floor design to maximize under-vehicle access. This means technicians can roll equipment freely without fighting crossbars or low plates. The result is smoother workflow, easier tool use, and better ergonomics for the crew.
β’ Adjustable Runway Width: Not all vehicles are the same, and thatβs where adjustable runways shine. With flexibility from compact cars to extended wheelbases, the FP14K adapts to your service needs. This versatility helps shops avoid downtime and maximize each service bay.
β’ Safety Lock System: A multi-position lock system engages automatically as the lift rises, providing security at multiple working heights. This feature ensures operators can work with confidence, knowing the lift is secured. It also makes long-term storage of vehicles safe and worry-free.
β’ Extended Ramp Design: The 30β³ long ramps simplify the process of driving vehicles onto the lift. The extended surface reduces steep angles, making it easier for low-clearance cars and heavy trucks alike. Your team saves time and avoids the hassle of positioning vehicles multiple times.
Minimum Garage Requirements
✓ Ceiling Height: At least 91' (7'7') recommended ✓ Floor Space: 237' L x 123' W (19'9' x 10'3') ✓ Concrete Thickness: Minimum 4' (101.6 mm) ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 220V. 20 AMP. 1PH ✓ Post Height: 85' (7'1') (measure before ordering)
✓ Ceiling Height: At least 91' (7'7') recommended
✓ Floor Space: 237' L x 123' W (19'9' x 10'3')
✓ Concrete Thickness: Minimum 4' (101.6 mm)
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 220V. 20 AMP. 1PH
✓ Post Height: 85' (7'1') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Tuxedo FP14K 14,000 lb 4-Post Lift Specifications | |
| Manufacturer | Tuxedo |
| Model | FP14K |
| Capacity | 14,000 lbs |
| Overall Length w/ Ramp | 237β³ |
| Overall Width (Outside Base Plates) | 123β³ |
| Lifting Height | 65-1/4β³ |
| Width Between Posts | 108β³ |
| Width Between Runways | 0β³ to 41β³ |
| Width of Runways | 20-1/4β³ |
| Column Height | 85β³ |
| Max. Wheelbase (2 wheel) | 192β³ |
| Max. Wheelbase (4 wheel) | N/A |
| Ramp Length | 30β³ |
| Max. Clearance Under Track | 60β³ |
| Cable Diameter | N/A |
| Base Plate Dimensions | 10.5β³ Γ 10.5β³ |
| Ship Weight | 2,615 lbs |
| Power | 220V. 20 AMP. 1PH |
| Shipping Dimensions | 208' x 48' x 36' |
| Warranty | 5 Years Structure, 1 Year Parts |
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
