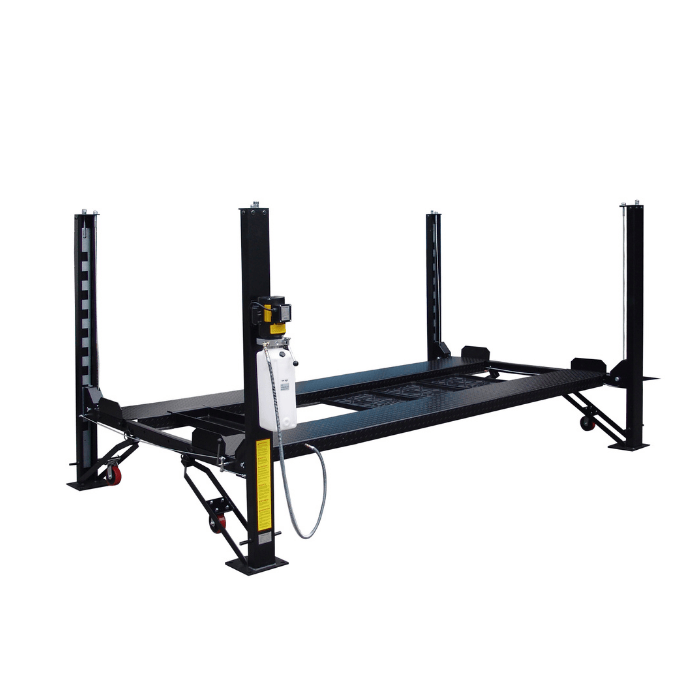

Tuxedo 8,000 lb 4-Post Deluxe Storage Lift - Extended Length/Height | FP8K-DX-XLT
Cramped Garage? Upgrade to the Tuxedo FP8K-DX-XLT 8,000 lb 4-Post Vehicle Lift for Big Trucks & Double-Deck Storage
When your garage is tight on space but big on vehicles, the Tuxedo FP8K-DX-XLT 4-post vehicle lift steps in to make life easier. Designed for extra length and width, this lift handles the big stuff. F-150s, Silverados, full-size SUVs, and long sedans. With ease. It’s built for strength, stability, and everyday convenience with an 8,000 lb lifting capacity, so you never have to worry about pushing your equipment to its limit. Deluxe storage 4-post lifts with extended length AND height combined hits the niche owners with full-size or lifted vehicles really need but most lifts don't address. Standard 8K storage lifts force buyers to compromise on either runway length or column height.
Ideal for both home garages and pro setups, this 4-post car lift runs on a standard 115 V outlet and features a drive-on design. No arm adjustments, no stress. Just roll on, lift up, and get to work or free up garage space for another vehicle. With a lift height of 82.3″ and 78″ of clearance underneath, you’ll be able to park one car on top and another underneath without a tight squeeze. Extended runways accommodate long-wheelbase trucks, extended-cab pickups, and full-size SUVs that won't fit standard 4-posts. The taller column setting clears lifted trucks and high-side SUVs without forcing an upgrade to 11K capacity.
And when it comes to safety? The single-point manual lock release, 12 locking positions, slack-cable safety system, and powder-coated steel construction mean you’re working with serious peace of mind. Whether you’re a DIY enthusiast, collector, or just need more room in the garage, the Tuxedo FP8K-DX-XLT offers the kind of versatility and reliability you’ll appreciate every time you use it. For owners of dually pickups, lifted Jeeps, or extended-cab trucks at the 8K weight class, the FP8K-DX-XLT is sized for the vehicles standard 8K storage lifts can't quite handle.
Need a different capacity or configuration? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our honest Are Tuxedo Lifts Worth It? breakdown. Questions? Call Support Desk.
Benefits of the Tuxedo FP8K-DX-XLT 4-Post Lift
Key Features of the Tuxedo FP8K-DX-XLT Extended Length/Height 4-Post Lift You'll Love:
• Extra-Wide, Extra-Long Design: Accommodates big pickups, long sedans, and daily drivers with room to spare. The extra-wide and extra-long geometry handles dually pickups, lifted SUVs, and crew-cab work trucks that overhang standard 8K storage lifts.
• Home-Ready Power Compatibility: Comes with a power cord and plug and runs on a standard 115 V outlet, so no 220V circuit is required. Just make sure the outlet's circuit can supply the lift's 20 amps; if it can't, an electrician may be needed to add or upgrade the circuit.
• Drive-On Convenience: No arm alignment required; simply drive on, lift, and get to work. Drive-on convenience eliminates the alignment guesswork that 2-post lifts require, especially valuable for repeated daily storage cycles.
• Robust Safety System: Single-point lock release, 12 locking positions, and a slack-cable backup guard every lift. Slack-cable backup is the redundant safety mechanism commercial-grade lifts include. Most consumer-tier 8K lifts skip it.
• Multi-Car Storage Solution: 78″ of clearance under the runways lets you stack vehicles and maximize space. 78 inches of under-runway clearance means most full-size SUVs fit underneath the upper vehicle without contact.
• Accessory-Ready Platform: Includes jack tray, drip trays, and poly casters. With optional sliding jack and aluminum ramps. Optional sliding jack and aluminum ramps let you upgrade the lift later as your service workflow grows beyond pure storage.
Minimum Garage Requirements
✓ Ceiling Height: At least 100' (8'4') recommended ✓ Floor Space: 222' L x 109' W (18'6' x 9'1') ✓ Concrete Thickness: Minimum 4-1/4' (108 mm) ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 115V, 20 Amp, 1 PH ✓ Post Height: 94' (7'10') (measure before ordering)
✓ Ceiling Height: At least 100' (8'4') recommended
✓ Floor Space: 222' L x 109' W (18'6' x 9'1')
✓ Concrete Thickness: Minimum 4-1/4' (108 mm)
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 115V, 20 Amp, 1 PH
✓ Post Height: 94' (7'10') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Tuxedo Deluxe Storage 8,000 lb 4-Post Car Lift Specifications | |
| Manufacturer | Tuxedo |
| Model | FP8K-DX-XLT |
| Lift Type | 4-Post Lift |
| Lifting Capacity | 8,000 lbs (3,629 kg) |
| Power Requirement | 115V, 20 Amp, 1 PH |
| Lifting Height | 82.3″ (2,090 mm) |
| Overall Length (with ramps) | 222.5″ (5,651 mm) |
| Overall Length (no ramps) | 190.7″ (4,842 mm) |
| Overall Width | 109.4″ (2,779 mm) |
| Runway Length | 180.5″ (4,584 mm) |
| Runway Tread Width | 18-5/8' (473 mm) |
| Runway Height | 4.3″ (109 mm) |
| Top of Runway to Ground | 4.8″ (122 mm) |
| Column Height | 94″ (2,388 mm) |
| Clearance Between Columns | 100.3″ (2,548 mm) |
| Clearance Between Runways | 42.2″ (1,072 mm) |
| Outside Runway to Outside Runway | 80.7″ (2,051 mm) |
| Clearance Under Runways | 78″ (1,981 mm) |
| Drive-Thru Width | 87.2″ (2,215 mm) |
| Locking Positions | 12 |
| Base Plate Size | 10″ × 12″ (254 × 305 mm) |
| Shipping Weight | 1,800 lbs (816 kg) |
| Pallet Dimensions | 167″ × 22″ × 41″ |
| Included Accessories | Jack Tray, 3 Drip Trays, Poly Casters |
| Optional Accessories | SJ-35 Sliding Jack, Aluminum Ramps |
| Warranty | 5 Years Structure / 1 Year Parts |
Tuxedo FP8K-DX-XLT Frequently Asked Questions
What does XLT add over the standard FP8K-DX?
Extended length and height: 180.5' runways (vs 165.5'), 94' columns, and an 82.3' max lifting height. That's the room crew-cab pickups and long-wheelbase SUVs need, plus extra stacking height underneath. If you're storing standard-length vehicles under a lower ceiling, the FP8K-DX saves money and 8 inches of column height.
Does the FP8K-DX-XLT run on a normal home outlet?
Yes -- it comes with a power cord and plug for a standard 115V outlet (115V, 20 Amp, single-phase), and no 220V circuit is needed. The outlet's circuit must be able to supply 20 amps; a 15-amp circuit is not enough, and a shared circuit may not be either. That's a big reason this 4 post storage lift is a home-garage favorite.
Can I park a car underneath a stored vehicle?
That's the point of the XLT height: 78' of clearance under the runways at full rise -- enough for most SUVs to park below a stored vehicle. Plan on at least 100' of ceiling (the columns stand 94'), and measure both vehicles stacked before ordering.
Which Tuxedo 4-post is right for me?
This FP8K-DX-XLT is the extended 8,000 lb storage lift. The FP8K-DX is the standard-length version; the FP9K-DX-XLT steps up to 9,000 lbs with wider runways; and the FP12K-K takes commercial work to 12,000 lbs.
Can I do repair work on the FP8K-DX-XLT?
Yes -- underbody work happens right from the runways, with drip trays and a jack tray included. For wheels-free service like brakes and tires, add the SJ-35 3,500 lb sliding jack, listed by Tuxedo as this lift's matching accessory.
Do I need to bolt it to the floor?
No -- 4-post storage lifts are free-standing on a slab at least 4-1/4' thick at 3,000 PSI. Anchoring is optional; skip it if you plan to use the included poly casters to reposition the lift.
Is the Tuxedo FP8K-DX-XLT worth it?
Extended runways, 12 locking positions, included casters and trays, 115V operation, and a 5-year structural warranty -- the XLT earns its premium if you store trucks or want taller stacking. See the Reviews tab above for buyer feedback, and read our Are Tuxedo Lifts Worth It? breakdown, or the 2-Post vs 4-Post guide if you're still choosing a style.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
