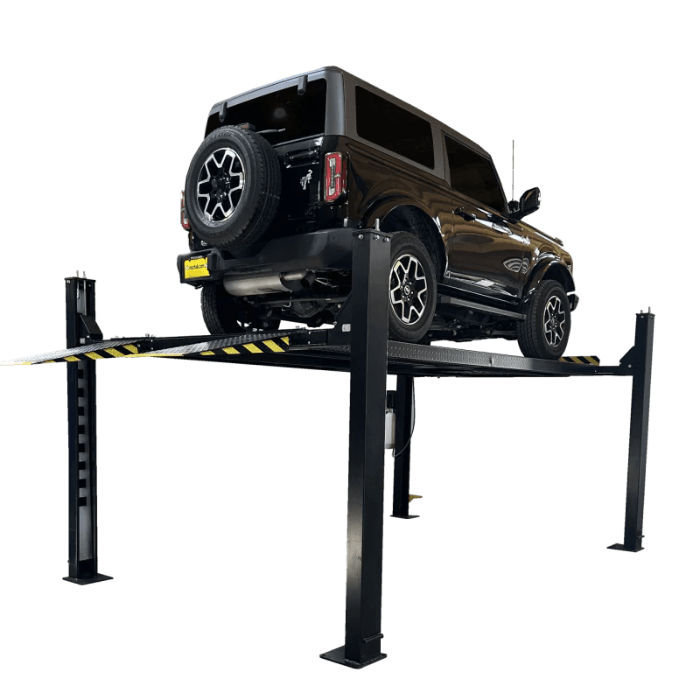

Tuxedo 9,000 lb 4-Post Lift – Includes Poly Casters, Drip Trays, Jack Tray | FP9K-DX-XLT
Running Out of Space? Upgrade to the Tuxedo FP9K‑DX‑XLT 9,000 lb 4‑Post Lift for Oversized Vehicles
Running out of garage space. Or ceiling height. For your bigger vehicles? The Tuxedo FP9K‑DX‑XLT 4‑post vehicle lift is made for exactly that problem. With a rugged 9,000 lb lifting capacity and an extended 85″ lift height, this cable‑driven lift is built to handle full‑size trucks, SUVs, and long‑wheelbase vehicles with ease. Whether you’re parking, wrenching, or storing a second vehicle underneath, this lift gets it done without compromise. 9K 4-post lifts with extended length/height geometry combined is rare even at higher capacities. The FP9K-DX-XLT keeps the included-accessory package while adding the dimensional headroom for full-size trucks and lifted SUVs.
The FP9K‑DX‑XLT is as practical as it is powerful. A single‑point manual lock release and 11 locking positions give you total control, while the slack cable safety system and steel approach ramps make every lift safe and smooth. It’s an ideal choice for both home garages and light commercial spaces, delivering industrial‑grade performance in a setup that runs on a standard 115V outlet. 9,000 lb capacity at extended-length runways and taller columns handles dually pickups, lifted trucks, and crew-cab work vehicles. Poly casters, drip trays, and jack tray all included standard.
It’s also fully loaded with accessories you’d normally pay extra for. This model comes standard with drip trays, a jack tray, and a poly caster kit. Letting you keep your workspace clean, store tools, and even roll the lift when needed. If you’ve got oversized vehicles and limited space, the FP9K‑DX‑XLT is the high‑capacity lift solution you’ve been waiting for. For owners with full-size, lifted, or extended-cab vehicles at the 9K weight class, the FP9K-DX-XLT delivers the dimensional fit that standard 9K lifts can't quite match.
Need a different capacity or configuration? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our honest Are Tuxedo Lifts Worth It? breakdown. Questions? Call Support Desk.
Benefits of the Tuxedo FP9K‑DX‑XLT 4‑Post Lift
Key Features of the Tuxedo FP9K‑DX‑XLT 9,000 lb 4‑Post Lift You'll Love:
• 9,000 lb Capacity: Perfect for long‑bed trucks, SUVs, and extended sedans. 9,000 lb capacity at the extended-runway tier covers full-size and dually pickups that won't fit standard 4-posts.
• Extended 85″ Lifting Height: Provides 81″ of clearance underneath for stacking or undercarriage work. Extra lift height gives techs full standing clearance under most vehicles for service work, not just storage clearance.
• Single‑Point Manual Lock Release: Unlocks all four posts simultaneously with one handle, paired with 11 locking positions. Single-handle release saves real time per cycle and reduces the door-banging that costs minutes across a busy day.
• Slack Cable Safety System: Locks the lift in place if cable tension is lost, adding a redundant layer of protection. The slack-cable safety is the redundant backup that distinguishes commercial-grade lifts from consumer-tier equipment.
• Accessory‑Packed Platform: Comes standard with drip trays, jack tray, and poly caster kit. Most competing lifts at this capacity charge $300-500 extra for the accessories that ship standard with the FP9K-DX-XLT.
• Home & Commercial Ready: Runs on 115V / 20 Amp power and fits most full‑size residential garages. It comes with a power cord and plug for a standard 115V outlet, so no 220V circuit is required; just plug it into an outlet whose circuit can supply the lift's 20 amps.
Minimum Garage Requirements
✓ Ceiling Height: At least 103' (8'7') recommended ✓ Floor Space: 239' L x 123' W (19'11' x 10'3') ✓ Concrete Thickness: The Tuxedo FP9K-DX-XLT manual gives two figures: 4' (floor requirements) and 4-1/4' (anchoring section) ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 115V – 20 Amp – 1 PH ✓ Post Height: 97' (8'1') (measure before ordering)
✓ Ceiling Height: At least 103' (8'7') recommended
✓ Floor Space: 239' L x 123' W (19'11' x 10'3')
✓ Concrete Thickness: The Tuxedo FP9K-DX-XLT manual gives two figures: 4' (floor requirements) and 4-1/4' (anchoring section)
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 115V – 20 Amp – 1 PH
✓ Post Height: 97' (8'1') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Tuxedo FP9K‑DX‑XLT 9,000 lb Deluxe Storage 4-Post Lift Specifications | |
| Manufacturer | Tuxedo |
| Model | FP9K‑DX‑XLT |
| Lifting Capacity | 9,000 lbs |
| Lift Type | 4‑Post Lift |
| Lifting Height | 85″ |
| Overall Length (w/ Ramps) | 239″ |
| Overall Length (no Ramps) | 197″ |
| Overall Width | 123″ |
| Overall Width (w/ Power Unit) | 134.5″ |
| Runway Length | 188.5″ |
| Runway Width (Tread) | 20″ |
| Runway Height | 4.8″ |
| Approach Ramp Length | 37″ |
| Column Height | 97″ |
| Clearance Between Columns | 111.5″ |
| Clearance Between Runways | 39.5″ |
| Outside Runway to Outside Runway | 79″ |
| Clearance Under Runways | 81″ |
| Drive‑Thru Width | 99″ |
| Locking Positions | 11 Adjustable Positions |
| Lifting Speed | 100 seconds |
| Power Requirements | 115V. 20 Amp. 1 PH |
| Shipping Weight | 2,354 lbs |
| Pallet Dimensions (L×W×H) | 201″ × 29″ × 23″ |
| Included Accessories | Drip Trays, Jack Tray, Caster Kit |
| Warranty | 5 Years Structure / 1 Year Parts |
Tuxedo FP9K-DX-XLT Frequently Asked Questions
Will my truck fit on the FP9K-DX-XLT?
This is the truck-friendly storage lift in the line: 9,000 lb capacity, 188.5' runways, 20'-wide treads, and a 99' drive-thru width. Crew cabs, long-wheelbase SUVs, and full-size vans load without tiptoeing. Max lifting height is 85' for serious clearance underneath.
Does the FP9K-DX-XLT run on a normal home outlet?
Yes -- it comes with a power cord and plug for a standard 115V outlet (115V, 20 amp, single phase), so no 220V circuit is needed, which keeps installation simple for home garages and storage buildings. The outlet's circuit must be able to supply 20 amps; a 15-amp circuit is not enough, and a shared circuit may not be either.
Can I park a car underneath a stored vehicle?
Yes -- with 81' of clearance under the runways at full rise, even SUVs fit below a stored vehicle. The columns stand 97', so plan on at least 103' of ceiling and measure both vehicles stacked before ordering.
Which Tuxedo 4-post is right for me?
This FP9K-DX-XLT is the 9,000 lb wide-body flagship of the storage line. The FP8K-DX-XLT covers 8,000 lbs with similar length for less; the FP8K-DX is the standard-length value pick; and the FP12K-K steps up to 12,000 lb commercial duty.
Can I do wheels-free service on it?
Yes -- pair it with the RJ-45 4,500 lb rolling bridge jack, the matching accessory for this lift. It rides the runways and picks the vehicle up by the frame so wheels hang free for brakes, tires, and suspension work.
Do I need to bolt it to the floor?
No -- 4-post storage lifts are free-standing on a slab at least 4' thick at 3,000 PSI (the manual's anchoring section specifies 4-1/4' if you anchor it). Anchoring is optional; skip it if you plan to use the included caster kit to reposition the lift.
Is the Tuxedo FP9K-DX-XLT worth it?
Nine thousand pounds of capacity, drip trays, jack tray, and casters included, 115V operation, and a 5-year structural warranty -- it's the deluxe storage package without the premium-brand markup. See the Reviews tab above for buyer feedback, and read our Are Tuxedo Lifts Worth It? breakdown, or the 2-Post vs 4-Post guide if you're still choosing a style.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
