AMGO Commercial 4-Post Lift – 30,000 lb Capacity, Extra-Long Runways | PRO-30E

BY AMGO
SKU PRO-30E
Save $1,365.00 $21,000.00 USD$19,635.00 USD
No Sales Tax in Most States
Free Warehouse Pickup Available
Official Factory Warranty
Free Warehouse Pickup
Jump to:

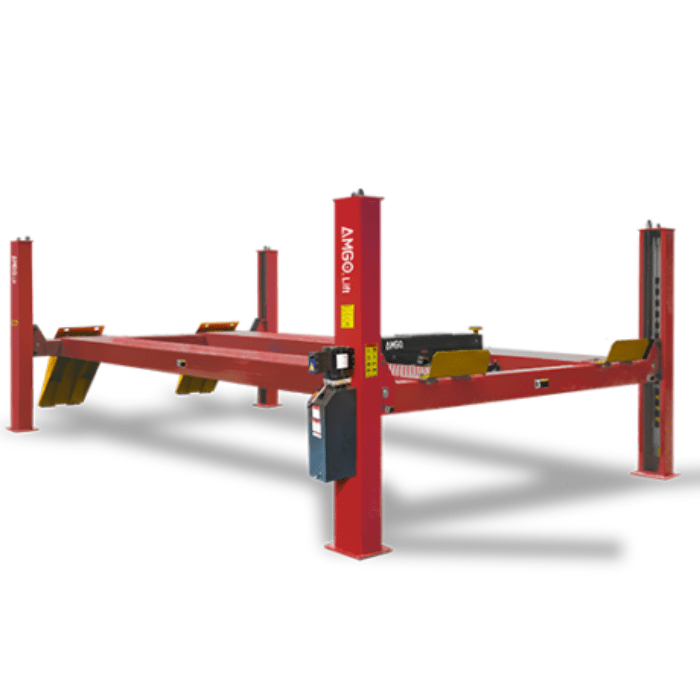

Heavy-Duty Power, Extended Reach: AMGO PRO-30E 30,000 lb 4-Post Lift for Commercial Service

If your shop handles the biggest trucks, buses, or industrial vehicles, you already know that most standard lifts simply aren’t up to the task. The AMGO PRO-30E 4 post lift solves that problem with a massive 30,000 lb lifting capacity, giving you the power to handle even the heaviest commercial jobs without worry. Its rugged build and advanced safety systems mean you can work confidently, knowing your equipment won’t let you. Or your customers. Down. No more struggling with undersized lifts or wasting shop space on multiple smaller units. The PRO-30E delivers the strength, stability, and capacity you need in one heavy-duty package. Extra-long runways at 30K capacity is the kind of niche commercial-fleet shops actually need but most lift manufacturers don't engineer. Long-wheelbase medium-duty trucks and Class A motorhomes routinely overhang standard 30K runways.

The extended platform length is designed for versatility, making it perfect for long trucks, fire engines, buses, and specialty service vehicles. The adjustable runways and non-skid diamond platforms give you the flexibility to work on a variety of wheelbases and tire types. Whether you’re performing routine service, major repairs, or inspections, this AMGO 4 post lift adapts to your needs and maximizes your shop’s efficiency. Plus, the extra-long runways provide better positioning and balance for larger vehicles, so you can work faster and safer. Extended runway sections accommodate full-length commercial vehicles without overhang. Reinforced base plates handle the additional structural load required for the longer runway design at 30K capacity.

Built with durability in mind, the PRO-30E features aircraft-grade lifting cables, a high-quality hydraulic system, and dual mechanical safety locks. An ETL-certified power unit ensures consistent performance, while the air-driven lock release makes lowering the lift smooth and hassle-free. If you’re ready to upgrade your shop with a lift that combines power, reliability, and safety in one, the 30000 lb 4 post lift from AMGO is the smart choice. For commercial fleet shops, transit operations, and Class A motorhome service facilities, the PRO-30E is sized for the actual vehicles in the fleet, not just standard test wheelbases.

Need a different capacity or configuration? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our 2-Post vs 4-Post guide to pick the right style. Questions? Call Support Desk.

Heavy-duty AMGO PRO-30E lift with adjustable runways and ETL-certified power unit

Benefits of the AMGO PRO-30E 4-Post Lift

True 30K Structural Rating
Built for fleet medium-duty trucks, transit vans, and Class A motorhomes that exceed standard heavy-duty ratings. Industrial-grade structural design.
Optimized Shop Workflow
Cut down on load times with extra-wide and extra-long runways. Drivers position vehicles quickly without alignment guesswork.
Safe and Stable
Heavy-duty mechanical locking system engages at every height with dual-redundant safety stops. Built for the longer service times required by heavier vehicles.
Wide Vehicle Compatibility
Wide column spacing accommodates dually-axle work trucks, transit vans, and Class A RVs without scraping or guesswork.
Shop-Ready Durability
Industrial-grade steel structure designed for daily heavy-cycle work without flex or fatigue under sustained load.
Ample Clearance
Extended height and wide column spacing let multiple techs work simultaneously beneath even oversized vehicles.

Key Features of the AMGO PRO-30E 4-Post Lift You'll Love:

• 30,000 lb Lifting Capacity: This lift’s massive capacity makes it a go-to choice for shops working with heavy-duty trucks, buses, and industrial vehicles. The power to handle large loads safely means fewer limitations on what jobs you can take, opening the door to more service opportunities and bigger profits.

• Extended-Length Runways: The extra-long runways allow for better positioning of long-wheelbase vehicles, including specialty service trucks and buses. This added length improves balance during lifts and makes the PRO-30E more versatile for a wide range of vehicles.

• Dual Mechanical Safety Locks: Equipped with mechanical self-locking systems on both sides, this lift ensures maximum safety while elevated. These locks engage automatically and are backed by an air-driven release system, giving you peace of mind with every lift.

• Adjustable Runways: The runway width can be modified to accommodate different vehicle sizes, making this lift ideal for both narrow-frame trucks and wide industrial vehicles. This flexibility helps you serve a wider customer base without extra equipment.

• ETL-Certified Power Unit: The included ETL-certified hydraulic power unit delivers reliable, consistent performance. This certification ensures the unit meets strict safety and quality standards, reducing downtime and maintenance issues.

Top and front view schematic of AMGO PRO-30E heavy-duty 4 post lift

Minimum Garage Requirements

✓ Ceiling Height: At least 97' (8'1') recommended ✓ Floor Space: 366' L x 149' W (30'6' x 12'5') ✓ Concrete Thickness: Minimum 5' ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 1.0 HP 110V/60Hz standard, 2.0 HP 220V/60Hz optional upgrade ✓ Post Height: 91' (7'7') (measure before ordering)

✓ Ceiling Height: At least 97' (8'1') recommended
✓ Floor Space: 366' L x 149' W (30'6' x 12'5')
✓ Concrete Thickness: Minimum 5'
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 1.0 HP 110V/60Hz standard, 2.0 HP 220V/60Hz optional upgrade
✓ Post Height: 91' (7'7') (measure before ordering)

*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.

AMGO PRO-30E 30,000 lb 4-Post Lift Specifications

Manufacturer AMGO
Model PRO-30E
Lifting Capacity 30,000 lbs
Lifting Time 133s
Overall Length (Including Ramps) 366 1/8'
Overall Length (No Ramps) 307 1/16'
Overall Width 147 9/16'
Width Between Columns 130'
Max. Lifting Height 75 3/16'
Max. Lock Height to Top of Runway 72 1/16'
Overall Height 92'
Minimum Height 10 1/4'
Max. Underneath Height 66 5/16'
Max. Lock Underneath Runway 63 3/16'
Drive-Thru Clearance 115 15/16'
Width Between Runways 46' - 54 1/16'
Outside Edge of Runways 94' - 102 1/8'
Gross Weight 6,860 lbs
Motor 1.0 HP 110V/60Hz standard; 2.0 HP 220V/60Hz optional upgrade
Shipping Dimensions Length: 8060 mm (317.5')
Width: 620 mm (24.5')
Height: 1000 mm (39.5')
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. Consumables), electrical, power units: 2 Years

AMGO PRO-30E Frequently Asked Questions

What does the 'E' add over the standard PRO-30?

Five feet of runway: 366-1/8' overall (vs 307-1/8') with 307-1/16' before the ramps. That's the difference for motorhomes, stretched box trucks, and long buses. The PRO-30 remains the pick for standard-length heavy fleets.

What vehicles is the PRO-30E built for?

A 30,000 lb 4 post lift for RVs, school buses, dump trucks, and long delivery chassis. The 115-15/16' drive-thru and runways adjustable to 54-3/4' apart handle wide heavy vehicles, with 66-5/16' of standing clearance underneath.

Will it fit in my building?

The columns stand 92', so 97' (8'1') of ceiling covers lifting -- but measure your tallest raised vehicle. Length is the planning number: figure a 31-foot bay plus approach for the 366' footprint.

Can I do wheels-free service on it?

Yes -- pair it with the RJ-20A 20,000 lb pneumatic rolling jack for lifting heavy axles, with the 40106A airline kit plumbing air along the runway.

What power does it need?

A 1.0 HP 110V/60Hz standard (2.0 HP 220V/60Hz upgrade available), ETL-certified power unit -- no three-phase service required, even at this capacity. Need more than 30,000 lbs? The PRO-40E carries 40,000 lbs on the same extended footprint.

Do I need to bolt it to the floor?

At 30,000 lbs, yes -- anchor per the manual on concrete at least 5' thick at 3,000 PSI, and have your slab engineering verified for heavy-fleet duty before ordering.

Is the AMGO PRO-30E worth it?

Extended 30,000 lb capability on single-phase power with AMGO's 5-year structure / 3-year hydraulics / 2-year electrical warranty. See the Reviews tab above for buyer feedback, and our 2-Post vs 4-Post guide if you're still choosing a style.

Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.

Recommended Concrete Slab & Electrical Setup

Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.

Concrete Slab Depth

9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.

Electrical Supply

Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.

Ceiling Clearance

Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
