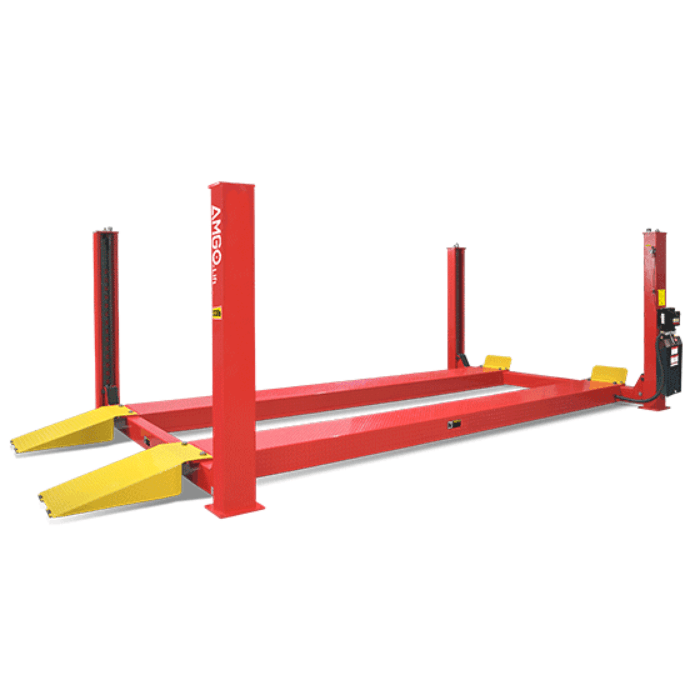

AMGO Commercial 4-Post Lift – 30,000 lb Capacity | PRO-30
Built for Big Jobs: AMGO PRO-30 30,000 lb 4-Post Lift for Heavy-Duty Service
When it comes to lifting the heaviest vehicles in a busy commercial or industrial shop, the last thing you want is a lift that struggles under pressure. The AMGO PRO-30 4 Post Lift is built for those high-demand jobs where reliability, strength, and safety are non-negotiable. With a massive 30,000 lb lifting capacity, it easily handles heavy-duty trucks, buses, fleet vehicles, and specialized equipment. Many shops face downtime due to lifts that can’t keep up with large vehicle demands. The PRO-30 solves that problem with unmatched durability and stability. At 30K capacity, you're squarely in commercial fleet, transit, and medium-duty truck territory. Most lifts at this capacity carry 5-figure premiums for unbranded commercial labels and 6-figure premiums for major-brand commercial equipment.
This 30000 lb 4 post lift is designed to withstand constant use in professional environments. The high-grade hydraulic system works in tandem with a cable-driven design, ensuring smooth, controlled lifts every time. Wide runways with adjustable width settings allow you to work on a range of vehicles without needing multiple lifts. That flexibility is a game-changer for shops that handle everything from utility trucks to oversized RVs. Industrial-grade 30K structural rating with reinforced columns, base plates, and runways. The 2.0 HP 220V power unit cycles consistently at full capacity, with mechanical lock-and-release for secure heavy-cycle service.
Built by AMGO, one of the most trusted names in heavy-duty automotive equipment, the PRO-30 is ETL certified and engineered with advanced safety features, including a mechanical self-locking device and dual safety systems. This is more than just a lift. It’s a long-term investment in productivity, safety, and efficiency for your shop. For shops handling medium-duty trucks, transit vans, and Class A motorhomes, the PRO-30 delivers genuine 30K commercial structural rating in a price band independent fleet shops can absorb.
Need a different capacity or configuration? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our 2-Post vs 4-Post guide to pick the right style. Questions? Call Support Desk.
Benefits of the AMGO PRO-30 4-Post Lift
Key Features of the AMGO PRO-30 4-Post Lift You'll Love:
• Massive 30,000 lb Lifting Capacity: Engineered for the heaviest lifting demands, the PRO-30 easily accommodates oversized commercial trucks, buses, and fleet vehicles. This capability ensures you can take on more jobs without worrying about weight limitations. 30K capacity covers medium-duty trucks, transit vans, and Class A motorhomes. True commercial-fleet structural rating.
• ETL Certified Power Unit: Every PRO-30 comes with an ETL certified power unit, guaranteeing performance that meets rigorous safety and quality standards. This certification gives shop owners confidence in the lift’s long-term reliability. Extra-wide design accepts wide-body commercial vehicles without scraping during loading at heavier capacity tiers.
• Mechanical Self-Locking Safety Device: The mechanical self-locking system automatically engages at multiple positions during the lift, providing an added layer of protection. The air-driven lock release allows for smooth operation when lowering the vehicle. Heavy-duty runways with extended length distribute load across the full footprint without flex at sustained 30K cycling.
• Dual Safety System: A combination of primary multiple-position locks and a cable-slack safety system ensures redundancy, so even in the unlikely event of a failure, your vehicle remains secure. Precision locking engages at multiple positions with audible confirmation. Commercial-grade reliability for fleet work.
• Aircraft-Grade Cables: The PRO-30 uses premium aircraft-grade cables designed to handle extreme tension without stretching or fraying. This means smoother operation, less maintenance, and a longer lifespan for your lift. Industrial-grade build quality holds up to daily commercial cycling without flex or fatigue under sustained loads.
• Adjustable Runway Width: With adjustable runway spacing, the PRO-30 can accommodate vehicles of different widths. From standard trucks to wide-body commercial vehicles. This flexibility makes it a versatile choice for diverse shop needs. Compatible with rolling bridge jacks for one-end service work. Important capability for commercial alignment and brake operations.
Minimum Garage Requirements
✓ Ceiling Height: At least 97' (8'1') recommended ✓ Floor Space: 307' L x 149' W (25'7' x 12'5') ✓ Concrete Thickness: Minimum 5' ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 1.0 HP 110V/60Hz standard, 2.0 HP 220V/60Hz optional upgrade ✓ Post Height: 91' (7'7') (measure before ordering)
✓ Ceiling Height: At least 97' (8'1') recommended
✓ Floor Space: 307' L x 149' W (25'7' x 12'5')
✓ Concrete Thickness: Minimum 5'
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 1.0 HP 110V/60Hz standard, 2.0 HP 220V/60Hz optional upgrade
✓ Post Height: 91' (7'7') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
AMGO PRO-30 30,000 lb 4-Post Lift Specifications | |
| Manufacturer | AMGO |
| Model | PRO-30 |
| Lifting Capacity | 30,000 lbs |
| Lifting Time | 133s |
| Overall Length (Including Ramps) | 307 1/16' |
| Overall Length (No Ramps) | 248' |
| Overall Width | 147 9/16' |
| Width Between Columns | 130' |
| Maximum Lifting Height | 75 3/16' |
| Maximum Lock Height (Top of Runway) | 71 5/8' |
| Overall Height | 92' |
| Minimum Height | 10 1/4' |
| Maximum Underneath Height | 66 5/16' |
| Maximum Lock Underneath Runway | 63 3/16' |
| Drive-Thru Clearance | 115 15/16' |
| Width Between Runways | 46' - 54 1/16' |
| Outside Edge of Runways | 94' - 102 1/8' |
| Gross Weight | 5,618 lbs |
| Motor | 1.0 HP 110V/60Hz standard; 2.0 HP 220V/60Hz optional upgrade |
| Shipping Dimensions | Length: 8060 mm (317.5') Width: 620 mm (24.5') Height: 1000 mm (39.5') |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
AMGO PRO-30 Frequently Asked Questions
What vehicles is the PRO-30 built for?
True heavy-duty fleet work: a 30,000 lb 4 post lift for dump trucks, RVs, school buses, delivery box trucks, and agricultural equipment. The 115-15/16' drive-thru and runways adjustable to 54-3/4' apart handle wide heavy chassis, with 66-5/16' of standing clearance underneath.
Will it fit in my building?
The columns stand 92', so 97' (8'1') of ceiling covers lifting -- but measure your tallest raised vehicle too. Length is the big planning number: 307-1/16' overall, so figure a 26-foot bay plus approach.
Which AMGO heavy-duty 4-post is right for me?
This PRO-30 is the 30,000 lb standard. Longer wheelbases (motorhomes, stretched box trucks)? The PRO-30E adds five feet of runway. Medium-duty fleet? The PRO-18 costs less. Heavier still? The PRO-40 tops the line at 40,000 lbs.
Can I do wheels-free service on it?
Yes -- pair it with the RJ-20A 20,000 lb pneumatic rolling jack for lifting heavy axles, with the 40106A airline kit plumbing air along the runway.
What power does it need?
A 1.0 HP 110V/60Hz standard (2.0 HP 220V/60Hz upgrade available), ETL-certified power unit -- standard shop power, no three-phase service required. The full rise takes 133s at this capacity.
Do I need to bolt it to the floor?
At 30,000 lbs, yes -- anchor per the manual on concrete at least 5' thick at 3,000 PSI (verify your slab engineering for heavy-fleet duty before ordering).
Is the AMGO PRO-30 worth it?
Thirty-thousand-pound capacity on single-phase power with AMGO's 5-year structure / 3-year hydraulics / 2-year electrical warranty -- heavy-fleet capability at a fraction of typical HD-lift pricing. See the Reviews tab above for buyer feedback, and our 2-Post vs 4-Post guide if you're still choosing a style.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
