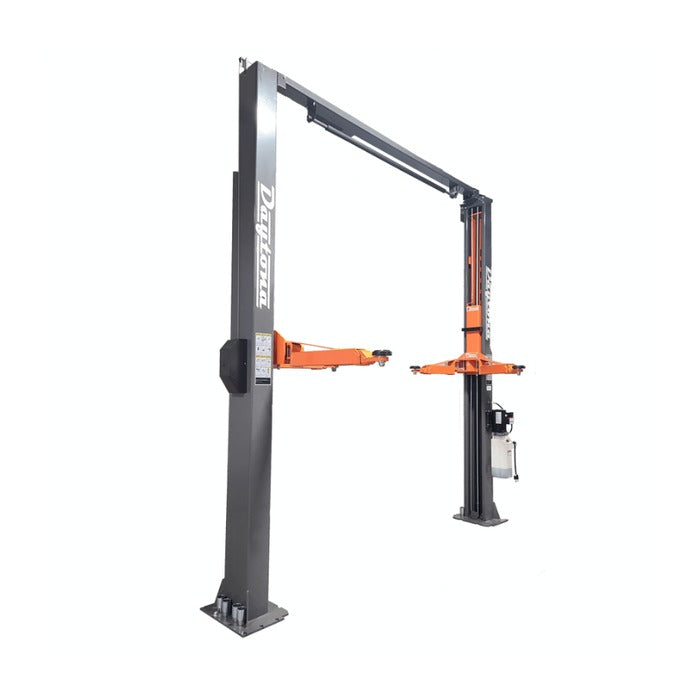

Daytona LTPA12 12,000 lb Two Post Adjustable Overhead Lift
One Lift That Fits Three Different Bays: the Daytona LTPA12 12,000 lb Two Post Adjustable Overhead Lift
Buying a fixed-width two post lift means committing to one bay layout forever. Set the columns wide and you lose walking room on both sides. Set them narrow and the day a dually rolls in you find out the hard way. Shops that move, add a bay, or change what they service end up owning a lift that fit the building they used to have.
The Daytona LTPA12 solves that with three adjustable width settings. Overall width runs from 150.3' to 162.1' and drive-thru clearance from 107.0' to 118.8', set at installation and changeable later if the bay changes. Underneath it is a proper 12,000 lb lift on dual direct drive hydraulic cylinders with cable equalization, so there is no chain in the load path to stretch or tension.
Safety is handled by automatic safety locks with single-point release and an overhead height limit switch, with full-length rubber door guards on both columns. Three-stage front arms reach 32.3' to 63.8', truck adapters ship standard, and it runs on 240V single phase at 3 HP and 13 amps. The lift stands 141.7' overall, so plan on a 12'-3' ceiling.
Not sure which width setting your bay needs? Call a Garage Equip Pro lift specialist with your bay dimensions and we will work it out with you. If your ceiling is under 12 feet, the LTPF12 floorplate lift hits the same 12,000 lbs at 114.0' tall. For ALI certification look at the BR10-2OH-33, and for heavier work the 15,000 lb LTPO15. Or compare every 2 post car lift and the full Daytona lineup.
Benefits of the Daytona LTPA12
Key Features of the Daytona LTPA12 12k Adjustable Lift
• Three adjustable width settings: The defining feature. Width between the columns runs 122.0' to 133.9', drive-thru clearance 107.0' to 118.8', and overall floor width 150.3' to 162.1'. Chosen at installation and adjustable afterward.
• 12,000 lb lifting capacity: Lifting range runs from a 3.9' minimum pad height up to 68.9'. Three-stage front arms and two-stage rear arms reach 32.3' to 63.8', so short wheelbase cars and long trucks both find proper pickup points.
• Dual direct drive with cable equalization: One cylinder per column driving its carriage directly, with equalization cables keeping the two sides synchronized through the full travel. Fewer wear parts in the load path than a chain-over-cylinder design.
• Automatic safety locks, single-point release: Locks engage automatically as the carriage rises and release from one handle. An overhead height limit switch and full-length rubber door guards round out the safety package.
• 141.7' overall height: Columns stand 135.0' with the overhead beam bringing the total to 141.7'. Front clearance is 9.4' and the base plate is 0.8' thick across a 20.9' column footprint.
• Optional two-foot height extension kit: The LTPA12-EXT raises the overhead bar for taller vans and lifted trucks. The kit weighs 210 lbs and is sold separately, so shops with the ceiling can add it and shops without do not pay for it.
Minimum Garage Requirements
✓ Ceiling Height: 12'-3' recommended (lift stands 141.7' to the top of the overhead bar) ✓ Bay Width: 14'-6' recommended (162.1' at the widest setting) ✓ Concrete Thickness: Daytona sources differ: manual floor section: 4' of steel-reinforced 3,500 PSI concrete cured 28 days; manual installation section: C30 foundations deeper than 600 mm; Daytona flyer: minimum 6' at 4,000 PSI; confirm with Daytona before installing
✓ Concrete Strength: 3,500 PSI (manual) or 4,000 PSI (flyer); see Concrete Thickness ✓ Floor Level: Within 3/8' across the installation area ✓ Electrical: 240V single phase, 3 HP, 13A, 60Hz dedicated circuit
✓ Ceiling Height: 12'-3' recommended (141.7' to overhead bar)
✓ Bay Width: 14'-6' recommended (162.1' at widest setting)
✓ Concrete Thickness: Daytona sources differ: manual floor section: 4' of steel-reinforced 3,500 PSI concrete cured 28 days; manual installation section: C30 foundations deeper than 600 mm; Daytona flyer: minimum 6' at 4,000 PSI; confirm with Daytona before installing
✓ Concrete Strength: 3,500 PSI (manual) or 4,000 PSI (flyer); see Concrete Thickness
✓ Floor Level: Within 3/8' across the installation area
✓ Electrical: 240V single phase, 3 HP, 13A, 60Hz dedicated circuit
*Daytona's documents differ on this lift's concrete (manual floor section: 4' of steel-reinforced 3,500 PSI concrete cured 28 days; manual installation section: C30 foundations deeper than 600 mm; Daytona flyer: minimum 6' at 4,000 PSI), so confirm with Daytona before ordering. The slab must be level within 3/8' across the installation area, with no anchor placed within 6' of a crack, edge, or expansion joint. Many residential garage slabs are poured at 4', which may not meet the stricter figures. Installing on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation.
| Daytona LTPA12 12,000 lb 2-Post Adjustable Lift Specifications | |
| Manufacturer | Daytona |
| Model | LTPA12 |
| Lift Type | 2-Post Adjustable Overhead Lift, three-stage front arms, two-stage rear arms |
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Lifting Range | 3.9' to 68.9' (100 to 1,750 mm) |
| Overall Height | 141.7' (3,598 mm) including overhead bar |
| Column Height | 135.0' (3,430 mm) |
| Overall Width (3 settings) | 150.3' to 162.1' (3,818 to 4,118 mm) at the floor 140.9' to 152.7' (3,578 to 3,878 mm) at the columns |
| Width Between Columns | 122.0' to 133.9' (3,100 to 3,400 mm) |
| Drive-Thru Clearance | 107.0' / 112.9' / 118.8' (2,719 / 2,869 / 3,019 mm) |
| Arm Reach | 32.3' to 63.8' (820 to 1,620 mm) |
| Column Base Depth | 20.9' (530 mm) |
| Front Clearance | 9.4' (240 mm) |
| Base Plate Thickness | 0.8' (20 mm) |
| Drive Type | Dual direct drive hydraulic cylinders with cable equalization |
| Safety System | Automatic safety locks with single-point release, overhead height limit switch, full-length rubber door guards |
| Power Requirement | 240V / 3 HP / 13A / 1PH / 60Hz |
| Concrete Requirement | Manual: 4' at 3,500 PSI, steel-reinforced (C30 foundations deeper than 600 mm in the installation section); flyer: minimum 6' at 4,000 PSI |
| Shipping Dimensions | Lift: 138' × 22' × 41' | 2,400 lbs Pump: 31' × 11' × 12' | 60 lbs Optional height kit: 32' × 15' × 18' | 210 lbs |
| Included Accessories | Truck adapters and full-length rubber door guards |
| Optional Accessories | LTPA12-EXT two-foot height extension kit, 210 lbs, sold separately |
| Warranty | 5-year structural | 2-year power units, cylinders, and seal kits | 1-year other defective parts |
| Blueprint | View the engineer stamped dimensional drawing |
Daytona LTPA12 Frequently Asked Questions
What does adjustable width actually mean here?
The overhead beam and base allow three column spacings rather than one fixed position. Narrow gives 107.0' of drive-thru clearance with a 150.3' overall footprint, wide gives 118.8' with a 162.1' footprint, and there is a middle setting between them. You choose at installation based on your bay, and it can be changed later if the shop layout changes. Fixed-width lifts make that decision permanent.
Which setting should I use?
Narrow if the bay is tight and you want walking room around the vehicle, wide if dual rear wheel trucks and full-size vans are regular work. Most general repair shops land in the middle. Call us with your bay width and the widest vehicle you service and we will tell you which one to spec.
How much ceiling height do I need?
The lift stands 141.7' to the top of the overhead bar, so plan on a 12'-3' ceiling measured to the lowest obstruction, not the peak. If your bay is under 12 feet, the LTPF12 floorplate lift gives you the same 12,000 lb capacity at 114.0' tall. If you have more height and service tall vans, the optional LTPA12-EXT kit adds two feet.
How does this compare to the BR10-2OH-33?
Both are adjustable-width direct drive overhead lifts with cable equalization, and they are close cousins. The BR10-2OH-33 is 10,000 lbs and ALI Certified, which matters if a fleet contract, insurer, or inspection program requires it. The LTPA12 trades that certification for 2,000 lbs more capacity and slightly longer arms. If certification is on your checklist, take the BR10. If raw capacity is, take this one.
What concrete does it need?
Daytona's documents differ on this lift's concrete (manual floor section: 4' of steel-reinforced 3,500 PSI concrete cured 28 days; manual installation section: C30 foundations deeper than 600 mm; Daytona flyer: minimum 6' at 4,000 PSI), so confirm with Daytona before ordering. The slab must be cured and level within 3/8' across the installation area, with no anchor placed within 6' of a crack, edge, or expansion joint. If your slab does not qualify, a pad can be poured to accommodate the lift. Check with your local building inspector about permits before installation. Verifying concrete is the customer's responsibility, and installing on an inadequate slab is genuinely dangerous.
Do I need three phase power?
No. 240V single phase, 3 HP, 13 amps, 60Hz on a dedicated circuit. Have a licensed electrician confirm the circuit and breaker sizing before the installer arrives.
How does delivery work?
The LTPA12 ships as freight in two pieces: the lift at 138' x 22' x 41' and 2,400 lbs, and the power unit at 31' x 11' x 12' and 60 lbs. If you order the optional height kit it comes as a third crate at 210 lbs. Curbside freight delivery and warehouse pickup are both available, and a lift specialist can quote the options for your ZIP.
What is the warranty?
Five years structural, two years on power units, cylinders, and seal kits, and one year on all other defective parts. Daytona has served shops in the United States and Canada since 1999 and stocks parts in regional warehouses.
