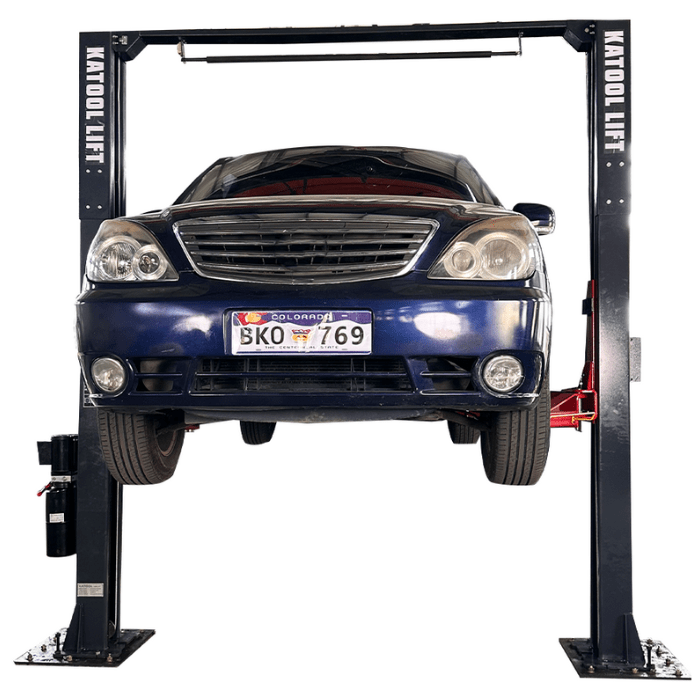

Katool Two-Post Car Lift - 12,000 lb Capacity | AM120SD
Powerful and Reliable 2 Post Car Lift by Katool for Your Garage or Workshop
Looking for a reliable and heavy-duty solution to lift cars, trucks, and SUVs? The AM120SD 12,000 lb Single-Point-Lock 2 Post Car Lift by Katool is the perfect addition to your garage or automotive repair shop. If you've struggled with lifts that lack stability or sufficient lifting capacity, this 2-post car lift is the answer. With a robust design and reliable performance, it’s built to handle large vehicles with ease, making maintenance and repairs simpler and safer. 12K capacity is the sweet spot for most independent shops. It handles full-size trucks and SUVs with margin, without committing to commercial-fleet pricing or commercial-fleet maintenance schedules.
With a lifting capacity of 12,000 lbs (5,443 kg), this lift can handle a variety of vehicles, from compact cars to larger trucks. The maximum lifting height of 70.87 inches (1,800 mm) provides ample space for working underneath vehicles, while the minimum lifting height of 4.25 inches (110 mm) is perfect for low-sitting vehicles. The Single-Point Lock System ensures secure and efficient locking, enhancing the safety and ease of use. The 4HP 220V single-phase motor delivers consistent power across the full capacity range, faster than the 3HP motors most 12K lifts use. The 144-inch overall height fits standard commercial bays.
Whether you need it for a busy automotive repair shop or personal use in your garage, this two-post car lift is designed to last. It offers exceptional stability, heavy-duty construction, and peace of mind with every use. For shops handling daily full-size vehicle work where operator efficiency matters, the AM120SD pairs single-point release with above-class motor power for the kind of cycle speed that compounds across a full day.
Looking for a different setup? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Katool Car Lifts Worth It? breakdown. Questions? Call Support Desk.
Benefits of the AM120SD 2 Post Car Lift by Katool
Key Features of the Katool AM120SD 12,000 lb 2 Post Car Lift You'll Love:
• 12,000 lb Capacity: Handles sedans, SUVs, large trucks. No compromise on stability or safety. The structural rating is verified at full capacity with appropriate margin, not approximated for marketing.
• Single-Point Lock System: Secure, efficient locking without manual secondary locks. Single-point release engages and disengages from one location, cutting walking time per cycle in busy commercial bays.
• Heavy-Duty Design: Robust steel construction for constant professional use. Heavy-gauge steel columns and reinforced base plates designed for sustained daily commercial cycling.
• Versatile Lifting Heights: 70.87 in max / 4.25 in min. Ideal for low-profile cars and tall vehicles alike. Three-stage arms accommodate short and long wheelbases without swapping arm sets between vehicle types.
• Wide Application: Perfect for repair shops, factory workshops, auto shows, or general maintenance. From sedans through full-size pickups, the lift covers nearly every passenger vehicle independent shops handle daily.
• Durable & Long-Lasting: Built for years of reliable performance. An investment that pays for itself. Sealed lubrication and heavy-gauge components translate to fewer service intervals and longer working life.
Minimum Garage Requirements
✓ Ceiling Height: At least 150' (12'6') recommended ✓ Footprint: 110' drive-thru x 131' overall (9'2' x 10'11') ✓ Concrete Thickness: Minimum 5.9' (150 mm), with at least 1.5 m of slab extending from the anchor points ✓ Concrete Strength: Concrete grade '150?' per the Katool manual (no PSI figure is stated) ✓ Electrical: 4.0 HP • 220 V • Single-Phase ✓ Overall Lift Height: 144' (12'0') (measure before ordering)
✓ Ceiling Height: At least 150' (12'6') recommended
✓ Footprint: 110' drive-thru x 131' overall (9'2' x 10'11')
✓ Concrete Thickness: Minimum 5.9' (150 mm), with at least 1.5 m of slab extending from the anchor points
✓ Concrete Strength: Concrete grade '150?' per the Katool manual (no PSI figure is stated)
✓ Electrical: 4.0 HP • 220 V • Single-Phase
✓ Overall Lift Height: 144' (12'0') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Katool AM120SD 12,000 lb Two-Post Car Lift Specifications | |
| Manufacturer | Katool |
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Max. Lifting Height | 70.87 in (1,800 mm) |
| Min. Lifting Height | 4.25 in (110 mm) |
| Motor Power | 4.0 HP • 220 V • Single-Phase |
| Locking Positions | 12 |
| Max. Rise (Ground-to-Pad) | 6 ft (1.83 m) |
| Overall Width | 131 in (3,327 mm) |
| Height of Posts | 144 in (3,658 mm) |
| Drive-Through Width | 110 in (2,794 mm) |
| Shipping Dimensions | 1,540 lbs, 112' x 18' x 36' (in) |
| Clear-Floor Design | Full undercarriage access |
| Arm Style | Symmetrical three-stage lifting arms for balanced load |
| Lock System | Single-point release with bilateral unlock |
| Construction | Heavy-duty steel for professional service centers |
| Included Hardware | (8) Anchor Bolts • (1) Hydraulic Pump |
Katool AM120SD Frequently Asked Questions
Will my truck fit on the AM120SD?
Yes -- as a 12,000 lb 2 post lift it covers everything through 1-ton single-rear-wheel pickups, with symmetrical arms that balance the load evenly and a 110' drive-thru width. Max rise is 70.87' -- full standing room under most vehicles.
What are the advantages of the clear-floor design?
The equalization and hydraulic lines route through the overhead beam, leaving nothing on the floor between the posts -- roll a transmission jack, drain, or creeper straight through. The posts stand 144' (12') tall, so plan on a 12.5-foot ceiling. Under lower ceilings, the H120D carries the same 12,000 lbs at 110.9' tall.
Which Katool 12,000 lb 2-post is right for me?
Three ways to get 12,000 lbs: this AM120SD is the standard clear-floor with symmetric arms and single-point release; the KT-M120 is the extra-tall version for vans and 14-foot bays; and the H120D is the floor-plate model for 10-foot ceilings. Prefer doors-wide-open loading? The 11,000 lb AS110D has asymmetrical arms.
Does the AM120SD run on 110V power?
No -- the 4 HP motor needs 220V single-phase on a dedicated circuit. If your garage only has 110V, see our Katool 4 post lifts, several of which offer 110V motors; have a qualified electrician confirm your circuit.
Do I need to bolt it to the floor?
Yes -- every 2-post must be anchored, and the anchor bolts ship with the lift. Plan on a slab at least 5.9' (150 mm) thick (the Katool manual specifies concrete grade '150?' and gives no PSI figure), and verify your concrete before ordering.
Should I get a 2-post or a 4-post lift?
Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. Four-posts win for storage and drive-on ease. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
How does freight delivery work?
The lift ships as freight at about 1,540 lbs. You can choose curbside freight delivery or free pickup at one of 19 warehouse locations nationwide -- enter your ZIP above to find the closest one. Most orders arrive within 1-2 weeks.
Is the Katool AM120SD worth it?
A 12,000 lb clear-floor with single-point release at this price is the professional-bay setup without the professional-bay invoice. See the Reviews tab above for buyer feedback, and read our Are Katool Car Lifts Worth It? breakdown on Garage Equip Pro Guides.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
