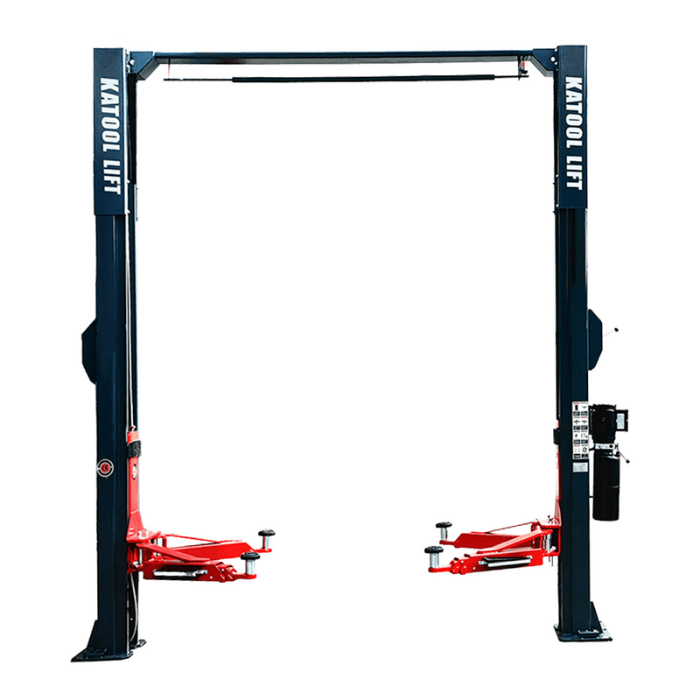

Katool Two Post Car Lift Single Point Lock Release - 11,000 lb Capacity | AS110D
Upgrade Your Garage with the Katool AS110D 11,000-Lb Two-Post Lift
Finding the right car lift can be a challenge, especially when balancing safety, efficiency, and versatility. This Two-Post Asymmetrical Vehicle Lift by Katool solves this problem with its 11,000-lb lifting capacity, making it ideal for cars, SUVs, and trucks. Whether you're a professional mechanic or a car enthusiast, this lift is designed to provide reliable, high-performance lifting with advanced safety features. Single-point lock release is the kind of feature buyers don't realize they want until they've used a lift without it. Walking the columns to engage individual locks adds real time to every cycle.
Built with asymmetric arms, the KT-AS110D maximizes accessibility and maneuverability. Its single-point lock release ensures smooth and secure lifting while the direct-drive cylinders provide reliable, maintenance-free operation. The overhead shutoff bar prevents accidental overextension, and rubber pad door protectors protect vehicles from scratches and dents. Certified to CE safety standards, this lift is a durable and trustworthy choice for any garage. 11,000 lb structural rating handles the typical mix of full-size trucks, SUVs, and light commercial vehicles. The 141-inch overall height with overhead crossmember keeps the floor between posts open.
This two post car lift is designed for efficiency and longevity, with high-strength steel construction and a compact two-post design that saves space. With a max lifting height of 70.75 inches and a minimum height of 3.74 inches, it accommodates low-profile vehicles and larger trucks. For home garages with adequate ceiling clearance and shops where operator efficiency matters, the AS110D pairs the right capacity with the right operational shortcuts.
Still searching for the ideal lift? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Katool Car Lifts Worth It? breakdown. Questions? Call Support Desk.
Benefits of the Katool AS110D Auto Lift
Key Features of the Katool 11000lb Two-Post Auto Lift You'll Love:
• Asymmetric Arm Design: Enhances accessibility for interior and undercarriage work, allowing mechanics to open doors wider and move around the vehicle with ease. Asymmetric arm geometry rotates the vehicle off-center, giving techs more door-swing space during service in tight commercial bays.
• Single-Point Lock Release: Simplifies locking and unlocking with a quick and hassle-free release mechanism, improving convenience during operation. Single-point release engages and disengages all locks from one location, cutting walking time per cycle for faster service throughput.
• Direct Drive Cylinders: Provides smooth, efficient, and maintenance-free lifting. Unlike chain-driven systems, this design reduces wear and extends the lift's lifespan. Direct-drive cylinders eliminate the secondary cable systems that fail first in cheaper lifts, reducing maintenance schedule overhead.
• Overhead Shutoff Bar: Automatically stops the lift at maximum height to prevent ceiling damage, protecting both the lift and the vehicle. Overhead shutoff bar prevents the lift from contacting the ceiling or vehicle, even if the operator's attention slips during cycling.
• Rubber Pad Door Protectors: Thick rubber pads prevent scratches and dents on vehicle doors, absorbing impact and reducing accidental damage. Rubber pad door protectors prevent the door-edge marring that's a real issue with frequent service work in busy bays.
• Adjustable Support Adapters: Designed to fit a wide range of vehicle sizes. The adjustable adapters ensure a stable and secure lift for different frame configurations. Adjustable adapters cover the full frame-height range from low cars to body-on-frame trucks without arm-swap overhead.
Minimum Garage Requirements
✓ Ceiling Height: At least 147' (12'3') recommended ✓ Footprint: 99' drive-thru x 134' overall (8'3' x 11'2') ✓ Concrete Thickness: Minimum 5.9' (150 mm) ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 220VAC/60HZ/1PH ✓ Overall Lift Height: 141' (11'9') (measure before ordering)
✓ Ceiling Height: At least 147' (12'3') recommended
✓ Footprint: 99' drive-thru x 134' overall (8'3' x 11'2')
✓ Concrete Thickness: Minimum 5.9' (150 mm)
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 220VAC/60HZ/1PH
✓ Overall Lift Height: 141' (11'9') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Katool AS110D Heavy-Duty Two-Post Car Lift Specifications | |
| Manufacturer | Katool |
| Lifting Capacity | 11,000 lbs (4,990 kg) |
| Max. Lifting Height | 70.75 inches (1,800 mm) |
| Min. Height | 3.74 inches (95 mm) |
| Overall Height | 141.25 inches (3,587 mm) |
| Overall Width | 134.65 inches (3,420 mm) |
| Outside Columns | 120.4 inches (3,058 mm) |
| Inside Columns | 109.37 inches (2,778 mm) |
| Drive-Thru Clearance | 99.61 inches (2,530 mm) |
| Motor | 220VAC/60HZ/1PH |
| Net Weight | 1,323 lbs (600 kg) |
| Shipping Dimensions | 112' x 18' x 36' |
Katool AS110D Frequently Asked Questions
What does 'asymmetrical' mean on the AS110D?
On an asymmetrical 2 post lift, the columns are rotated and the front arms are shorter than the rears, so the vehicle sits further back between the posts. The payoff: doors swing wide open without hitting the columns -- no more climbing out of a half-open door every time you load a car. For interior work, detailing, and daily shop use, it's the convenience upgrade over symmetric designs.
Will my truck fit on the AS110D?
Yes -- as an 11,000 lb 2 post lift it covers half-tons, 3/4-tons, crew cabs, and full-size SUVs. The asymmetric arm setup positions the cabin rearward, which also helps balance cab-heavy pickups on the pads. Drive-thru clearance is 99.61'.
Which Katool 2-post is right for me?
This AS110D is the doors-wide-open pick of the lineup. The AK-H115Z matches its 11,000 lbs with a base-plate design for low ceilings; the KT-M110 is the symmetric-arm version of the same overhead clear-floor design; and the 10,000 lb KT-H100 and KT-H105 cost less for lighter vehicles.
Does the AS110D run on 110V power?
No -- it needs 220V single-phase on a dedicated circuit. If your garage only has 110V, see our Katool 4 post lifts, several of which offer 110V motors; have a qualified electrician confirm your circuit.
Do I need to bolt it to the floor?
Yes -- every 2-post must be anchored. Plan on a slab at least 5.9' (150 mm) thick at 3,000 PSI compressive strength, and verify your concrete before ordering. At 141.25' (11'9') tall, also check your ceiling -- a 12-foot bay is ideal.
Should I get a 2-post or a 4-post lift?
Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. Four-posts win for storage and drive-on ease. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
How does freight delivery work?
The lift ships as freight at about 1,323 lbs. You can choose curbside freight delivery or free pickup at one of 19 warehouse locations nationwide -- enter your ZIP above to find the closest one. Most orders arrive within 1-2 weeks.
Is the Katool AS110D worth it?
Asymmetric convenience usually carries a premium at the big-name brands -- here it's a few hundred dollars over our symmetric models. See the Reviews tab above for buyer feedback, and read our Are Katool Car Lifts Worth It? breakdown on Garage Equip Pro Guides.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
