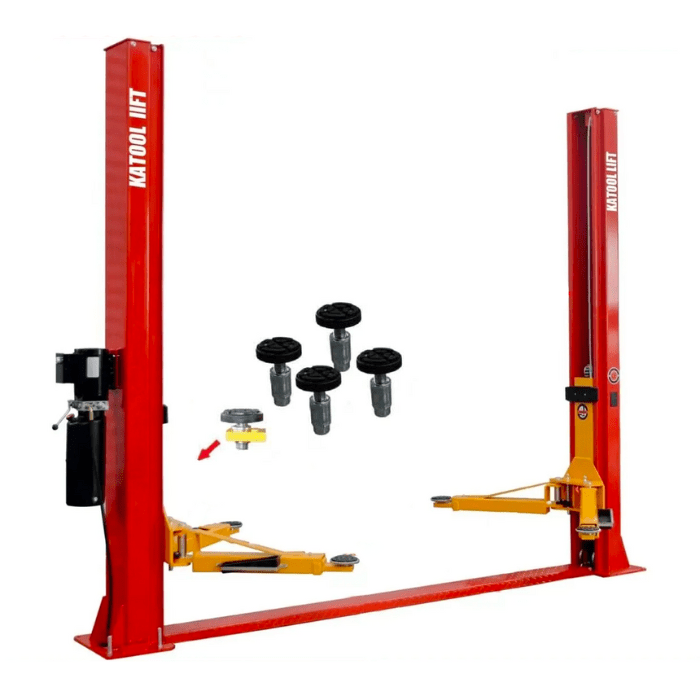

Katool Two Post Vehicle Lift - 10,000lb Capacity | KT-H100
Serious About Car Maintenance? The Katool KT-H100 10,000 lb Two-Post Lift is Your Ultimate Workshop Upgrade
Working on your vehicle shouldn’t be a hassle. Whether you're a professional mechanic or a car enthusiast, struggling with inadequate lifting equipment can make repairs and maintenance frustrating, unsafe, and inefficient. The KT-H100 Two-Post Vehicle Lift by Katool is designed to eliminate these issues, providing a reliable and robust solution that transforms your workspace. And in the 10K consumer-shop tier, the gap between budget lifts and proven-reliable lifts is huge. Many 10K lifts cut structural metal to hit a price point, then fail under sustained cycling.
With a 10,000 lb lifting capacity, this car lift is built to handle everything from compact cars to full-size SUVs with ease. Engineered with dual hydraulic chain-drive cylinders, a symmetric arm design, and manual safety release mechanisms, the KT-H100 ensures smooth operation, stability, and maximum safety. Certified to CE safety standards, this lift undergoes rigorous dynamic and static load tests to guarantee peak performance and durability. Heavy-duty steel construction at this capacity level uses thicker columns and reinforced base plates than budget 8K equivalents. The 220V motor cycles consistently at full load.
Whether you run a professional repair shop or want a game-changing upgrade for your home garage, the KT-H100 Two Post Car Lift delivers exceptional functionality, reliability, and ease of use. With its space-saving design and durable build, this lift provides seamless performance, ensuring a smooth workflow while maximizing safety. Investing in this model means securing an efficient, long-lasting, and professional-grade lifting solution that meets all your automotive maintenance needs. For home shops, side-bay operations, and small commercial garages, the KT-H100 delivers true 10K capability with the structural margin to hold up to daily use over years, not months.
Different cars, different needs! Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Katool Car Lifts Worth It? breakdown. Questions? Call Support Desk.
Benefits of the Katool H100 Auto Lift
Key Features of the Katool H100 10000lb Two-Post Auto Lift You'll Love:
• Symmetric Arm Design for Stability: Ensures a balanced and evenly distributed weight load, keeping vehicles stable during lifting. Ideal for heavy-duty vehicles, providing extra support and reducing imbalance risks. Symmetric arm geometry distributes load evenly across both posts, simpler to operate than asymmetric layouts for sedan-heavy fleets.
• Dual Hydraulic Chain-Drive Cylinders for Efficient Lifting: High-performance dual hydraulic cylinders deliver smooth, powerful, and consistent lifting while reducing strain on the motor. Designed for reliability with minimal maintenance. Chain-drive cylinders avoid the cable-equalization wear that's the primary failure point in cheaper 2-post lifts.
• Manual Safety Release for Enhanced Security: Features a manual safety release mechanism accessible from both sides, allowing controlled lowering to prevent sudden drops or unexpected movements. Manual safety release is mechanically simple and operator-controlled. Fewer failure modes than air-actuated alternatives.
• Rubber Pad Door Protection to Prevent Damage: Integrated rubber pad door protectors safeguard vehicles from accidental dents and scratches, maintaining a pristine condition during operation. Rubber pads protect frame finish during contact and prevent the marring that's a real issue on premium vehicle finishes.
• Extension Support Adaptors for Versatility: Includes +30mm and +120mm adaptors to accommodate various vehicle sizes and chassis heights, making it ideal for servicing everything from sports cars to large trucks. Adjustable adapters cover frame heights from low cars to body-on-frame trucks without arm-swap overhead.
Minimum Garage Requirements
✓ Ceiling Height: At least 116' (9'8') recommended ✓ Footprint: 94' drive-thru x 142' overall (7'10' x 11'10') ✓ Concrete Thickness: Minimum 5.9' (150 mm) ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 220V/60HZ/1PH/2.2KW ✓ Overall Lift Height: 110' (9'2') (measure before ordering)
✓ Ceiling Height: At least 116' (9'8') recommended
✓ Footprint: 94' drive-thru x 142' overall (7'10' x 11'10')
✓ Concrete Thickness: Minimum 5.9' (150 mm)
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 220V/60HZ/1PH/2.2KW
✓ Overall Lift Height: 110' (9'2') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Katool H100 Professional-Grade Two-Post Car Lift Specifications | |
| Manufacturer | Katool |
| Lifting Capacity | 10,000 lbs (4,500 kg) |
| Lifting Height | Max: 70.75 in (1,800 mm), Min: 4.25 in (110 mm) |
| Overall Dimensions | Height: 110.25 in (2,800 mm), Width: 142.25 in (3,614 mm) |
| Drive-Thru Clearance | 94.5 in (2,400 mm) |
| Arm Reach (Front/Rear) | Min: 30.75 in (780 mm) / Max: 50.5 in (1,280 mm) |
| Motor Power | 220V/60HZ/1PH/2.2KW |
| Concrete Requirement | 5.9 in (150 mm) thick, 3,000 PSI rating |
| Weight | 1,256 lbs (570 kg) |
| Warranty | 1-year limited warranty on parts and defects |
Katool KT-H100 Frequently Asked Questions
Will my truck fit on the KT-H100?
As a 10,000 lb 2 post lift it covers every half-ton pickup, SUV, and sedan with room to spare -- an F-150 or RAM 1500 curbs between 4,500 and 5,800 lbs. Arm reach runs 30.75' to 50.5', covering most lift points. For 3/4-ton and heavier trucks, step up to the AK-H115Z or KT-M110.
Which Katool 2-post is right for me?
This KT-H100 is the value pick of the lineup -- a true 10,000 lb lift at the lowest price. The KT-H105 adds longer staggered arm reach for flexible positioning; the AK-H115Z steps up to 11,000 lbs with a base-plate design for lower ceilings; the KT-M110 is the 11,000 lb clear-floor overhead model; and the AS110D has asymmetrical arms for wide-open door clearance.
Will it fit in a home garage?
Yes -- at 110.25' (9'2') overall height, it's a 2 post lift for home garage ceilings of about 10 feet. Max lifting height is 70.75', so taller vehicles need proportionally more ceiling -- measure before ordering.
Does the KT-H100 run on 110V power?
No -- like nearly all 2-post lifts, it needs 220V single-phase on a dedicated circuit. If your garage only has 110V, see our Katool 4 post lifts, several of which offer 110V motors; have a qualified electrician confirm your circuit.
Do I need to bolt it to the floor?
Yes -- a 2-post lift must be anchored, no exceptions. Your slab needs to be at least 5.9' (150 mm) thick at 3,000 PSI compressive strength. Verify your concrete before ordering.
Should I get a 2-post or a 4-post lift?
Two-post lifts like this one are built for repair work -- wheels hang free for brakes, suspension, and tire jobs. Four-posts win for storage and drive-on convenience. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
How does freight delivery work?
The lift ships as freight at about 1,256 lbs. You can choose curbside freight delivery or free pickup at one of 19 warehouse locations nationwide -- enter your ZIP above to find the closest one. Most orders arrive within 1-2 weeks.
Is the Katool KT-H100 worth it?
It's the most affordable path to a real 10,000 lb 2-post in our catalog -- the money you save versus big-name brands buys your first year of parts and fluids many times over. See the Reviews tab above for buyer feedback, and read our Are Katool Car Lifts Worth It? breakdown on Garage Equip Pro Guides.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
