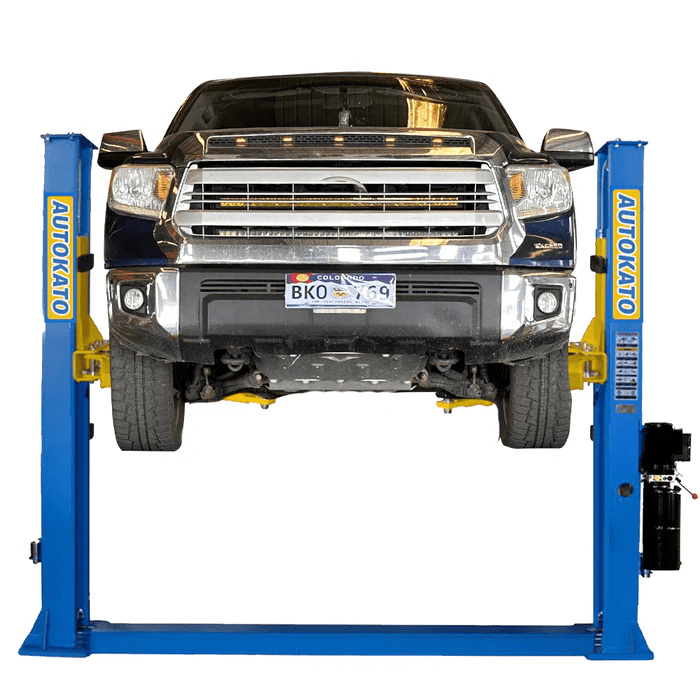

Katool Two Post Vehicle Lift - 11,000 lb Capacity | AK-H115Z
Skip the Guesswork. Choose the Katool AK-H115Z 11,000 lb Vehicle Lift Built for Reliability and Accessibility
Buying a vehicle lift for your garage can be a game-changer, but it often comes with frustration. Long installation times, wobbly lifting, and complicated safety systems can leave you scratching your head. Many folks end up with lifts that either don’t handle heavier cars or leave them stranded halfway up because of underpowered hydraulics. That’s why the Katool AK-H115Z was engineered to tackle those pain points head-on. With an 11,000 lb capacity and a low 3.9' pad height, you get both muscle and accessibility for small-to-medium vehicle servicing. Plus, the CE-approved design means you can trust it to hold up to 115% dynamic loads and 150% static loads without hesitation. Independent shops in the 11K capacity range face the same tradeoff over and over: pay 30% more for ISO-certified construction, or save the budget for an unverified rating that might or might not survive sustained cycling.
Once you’ve experienced smooth lifting speeds. 45-60 seconds up and 15-25 seconds down. You’ll wonder how you ever managed without an efficient vehicle garage lift. The dual hydraulic chain-drive cylinders work seamlessly with the electric pump, so you won’t need to babysit the lift during operations. And with built-in mechanical safeties, you’ll feel confident raising vehicles knowing the platform can’t slip. Whether you’re swapping brakes, changing oil, or rotating tires, every lift cycle is consistent and safe. Heavy-duty construction at this capacity level uses reinforced base plates and structural columns rated for daily commercial cycling, not just spec-sheet ratings. Mechanical safeties engaging at each stage mean you are never holding the load on hydraulic pressure alone.
Finally, installation is a breeze thanks to the base plate design and included screw-up pads plus extension adapters. You’ll have a fully operational garage lift ready in no time. Rubber door protectors on the columns keep car finishes pristine, and the 98.4' drive-thru clearance accommodates everything from sedans to light trucks. The Katool AK-H115Z isn’t just another vehicle lift. It’s the reliable backbone of any busy garage. For independent shops handling regular full-size truck and SUV work, the AK-H115Z brings commercial-grade structural rating into a price band that doesn't require a fleet contract to justify.
Need a different capacity or configuration? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Katool Car Lifts Worth It? breakdown. Questions? Call Support Desk.
Benefits of the Katool AK-H115Z Vehicle Lift
Key Features of the Katool AK-H115Z You'll Love:
• CE-Approved Load Testing: Every Katool AK-H115Z lift undergoes rigorous CE testing, ensuring it handles 115% dynamic and 150% static loads for reliable, heavy-duty performance. CE certification is the international structural verification that distinguishes commercial-grade lifts from consumer-tier equipment.
• Dual Hydraulic Chain-Drive Cylinders: Twin cylinders deliver smooth, synchronized lifting. Reducing vibration and extending component lifespan. Chain-drive cylinders avoid the cable-equalization wear that's the primary failure point on cheaper 2-post lifts in this capacity range.
• Base Plate Installation Design: Integrated base plates make installation straightforward without elaborate foundation work. Saving time and costs. Baseplate design routes hydraulic lines along the floor instead of overhead, fitting residential 9-10 foot ceilings without modification.
• Self-Locking Hydraulic Safety: Mechanical safeties automatically engage at each stage, preventing sag in power loss scenarios. Self-locking hydraulics provide a third safety layer beyond the mechanical lock and cable systems, particularly useful during long service cycles.
• Adjustable Pad Extensions: Screw-up pads and +100 mm adapters let you service sports cars and SUVs with ease. Adjustable pad extensions handle frame heights from low sports cars to body-on-frame trucks without swapping adapter sets.
• Protective Column Guards: Rubber door protectors safeguard vehicle finishes and assist with effortless alignment. Column guards protect the structural columns from door-edge contact during service work. Small detail, real long-term durability impact.
Minimum Garage Requirements
✓ Ceiling Height: At least 116' (9'8') recommended ✓ Footprint: 98' drive-thru x 140' overall (8'2' x 11'8') ✓ Concrete Thickness: Minimum 5.9' (150 mm) ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 220V AC / 60Hz / 1PH / 2.2 kW ✓ Overall Lift Height: 111' (9'3') (measure before ordering)
✓ Ceiling Height: At least 116' (9'8') recommended
✓ Footprint: 98' drive-thru x 140' overall (8'2' x 11'8')
✓ Concrete Thickness: Minimum 5.9' (150 mm)
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 220V AC / 60Hz / 1PH / 2.2 kW
✓ Overall Lift Height: 111' (9'3') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Katool AK-H115Z 11,000 lb Vehicle Lift Specifications | |
| Manufacturer | Katool |
| Model | AK-H115Z |
| Lifting Capacity | 11,000 lbs (5,000 kg) |
| Max Lifting Height | 72.83' (1,850 mm) |
| Min Height (Pad) | 3.9' (100 mm) |
| Lifting Time | 45-60 sec up / 15-25 sec down |
| Drive Mode | Electric & Hydraulic |
| Motor | 220V AC / 60Hz / 1PH / 2.2 kW |
| Net Weight | 1,252 lbs |
| Height Overall | 110.9' (2,818 mm) |
| Width Overall | 140.4' (3,565 mm) |
| Outside Column Width | 124.8' (3,170 mm) |
| Inside Column Width | 110.2' (2,800 mm) |
| Drive-Thru Clearance | 98.4' (2,500 mm) |
| Front Arm Reach (Min-Max) | 29.5'-46' (750-1,170 mm) |
| Rear Arm Reach (Min-Max) | 35.4'-58.2' (900-1,480 mm) |
| Arm Swing Angle | 90° |
| Oil Type | Dexron ATF or 10-WT hydraulic oil |
| Oil Tank Capacity | 10 liters |
Katool AK-H115Z Frequently Asked Questions
Will my truck fit on the AK-H115Z?
Yes -- as an 11,000 lb 2 post lift it covers half-tons, 3/4-tons, crew cabs, lifted SUVs, and full-size work vans. Three-stage arms reach 29.5'-46' front and 35.4'-58.2' rear, hitting lift points on everything from slammed coupes (3.9' pad height) to body-on-frame trucks with the included screw-up pads and +100 mm adapters.
Will it work under a low ceiling?
This is our 2 post lift for low ceiling garages: the base plate design routes hydraulic lines along the floor instead of overhead, so at 110.9' overall it fits under ceilings as low as about 9'8'. If you have 12+ feet and want a completely open floor, the clear-floor KT-M110 is the alternative.
Which Katool 2-post is right for me?
This AK-H115Z is the low-ceiling 11,000 lb pick. The KT-M110 matches its capacity with a clear-floor overhead design; the AS110D adds asymmetrical arms for wide-open doors; and if 10,000 lbs covers your vehicles, the KT-H100 and KT-H105 save a few hundred dollars.
Does the AK-H115Z run on 110V power?
No -- it needs 220V single-phase on a dedicated circuit. If your garage only has 110V, see our Katool 4 post lifts, several of which offer 110V motors; have a qualified electrician confirm your circuit.
Do I need to bolt it to the floor?
Yes -- every 2-post must be anchored, and this model asks for a 5.9' (150 mm) slab at 3,000 PSI. The integrated base plates keep the rest of the install simple, but verify your concrete before ordering.
Should I get a 2-post or a 4-post lift?
Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. Four-posts win for storage and drive-on ease. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
How does freight delivery work?
The lift ships as freight at about 1,252 lbs. You can choose curbside freight delivery or free pickup at one of 19 warehouse locations nationwide -- enter your ZIP above to find the closest one. Most orders arrive within 1-2 weeks.
Is the Katool AK-H115Z worth it?
CE-tested 11,000 lb capacity with self-locking hydraulics at a 10K-lift price -- and it fits garages taller lifts can't. See the Reviews tab above for buyer feedback, and read our Are Katool Car Lifts Worth It? breakdown on Garage Equip Pro Guides.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
