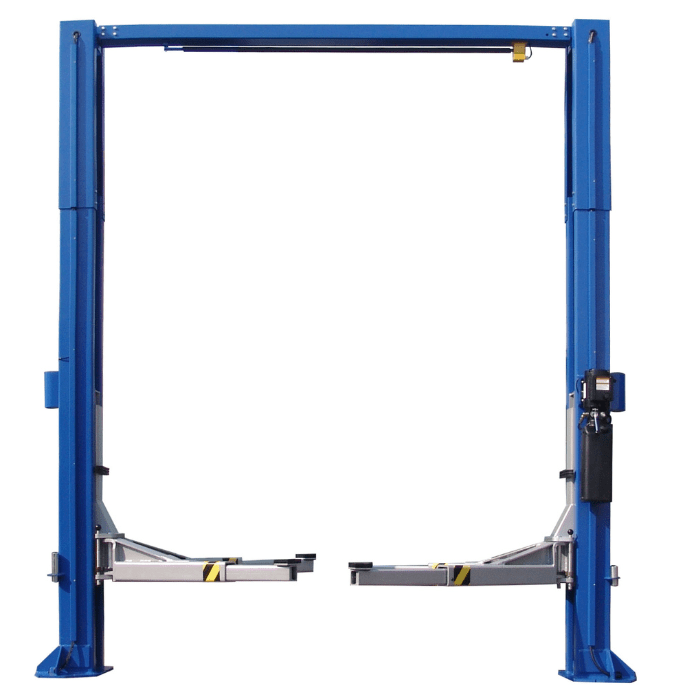

Tuxedo 12,000lb Two Post Lift - Direct Drive | TP12KC-D
Need Heavy-Duty Power? Upgrade to the Tuxedo TP12KC-D 12,000 lb 2-Post Car Lift with Clear-Floor Convenience
Choosing the right 2 post lift can be a challenge for shop owners who regularly service larger vehicles. Many entry-level lifts lack the weight capacity to handle full-size trucks or vans, while others create frustrating limitations with floor-plate designs that restrict movement under the vehicle. Safety can also become a concern when lifts arenβt engineered for balanced load distribution, leaving technicians cautious about using them on heavy fleet vehicles. Thatβs where the Tuxedo TP12KC-D 2 Post Lift stands out. Delivering professional-grade strength, clear-floor convenience, and a rock-solid design for heavy-duty use. Direct-drive 12K 2-post lifts eliminate the secondary cable systems that fail first in cheaper 12K lifts. The TP12KC-D's direct-drive hydraulics is the kind of structural simplification that pays back in lower maintenance schedules.
The 12,000 lb 2 post lift capacity ensures that your shop can confidently handle everything from SUVs and work trucks to commercial vans. Its symmetric arm configuration supports stable, balanced lifting, preventing tilt or misalignment during service. The clear-floor design keeps the bay open, making it easier to move transmission jacks, carts, and toolboxes without the hassle of a floor-plate obstruction. With a 72' lift height and a generous 122' width between columns, even larger vehicles fit comfortably without tight maneuvering. 12,000 lb capacity handles crew cabs, lifted trucks, work vans, and most light commercial vehicles. Heavy-duty steel construction with reinforced base plates rated for daily commercial cycling.
Designed specifically for professional shops, this Tuxedo 2 post car lift delivers both efficiency and durability. Its 50-second lift speed reduces downtime and boosts productivity, while the robust direct-drive system ensures long-lasting performance. With strong per-arm load support of 3,000 lbs, a tall 165' frame, and a dependable symmetric setup, the TP12KC-D makes high-capacity lifting simple, safe, and reliable for technicians who canβt afford delays. For shops needing 12K capability with maximum mechanical reliability, the TP12KC-D's direct-drive design is the right choice for long-term operational efficiency.
Need a different capacity or configuration? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Tuxedo Lifts Worth It? breakdown. Questions? Call Support Desk.
Benefits of the Tuxedo TP12KC-D 2-Post Lift
Key Features of the Tuxedo TP12KC-D 2-Post Lift You'll Love:
β’ 12,000 lb Lifting Capacity: This lift is engineered to handle the heaviest vehicles that come through your shop, from large SUVs to commercial vans. The robust construction ensures your technicians can safely work on fleet vehicles without worrying about exceeding limits. Having this capacity available expands the range of services your shop can confidently provide.
β’ Symmetric Arm Configuration: The TP12KC-D uses a fully symmetric design, which keeps vehicles centered and stable during lifts. This not only provides safety for technicians but also ensures proper balance for larger vehicles like trucks and vans. Symmetric arms allow consistent positioning, reducing the risk of improper load distribution.
β’ Clear-Floor Design: Unlike floor-plate models that obstruct movement, this lift features a clear-floor layout for total bay access. Toolboxes, carts, and transmission jacks can easily roll beneath the vehicle, streamlining workflows. For busy shops, this design saves time and creates a safer, more efficient environment.
β’ Tall & Wide Frame: With a 165' height and 122' width between columns, this model easily accommodates larger trucks and commercial vehicles. The wide drive-thru clearance of 109' reduces maneuvering hassles and makes positioning vehicles much faster. This added space makes the lift ideal for shops that service oversized vehicles daily.
β’ Heavy-Duty Load Support Per Arm: Each arm supports up to 3,000 lbs., ensuring stable and safe lifts even with full-sized trucks. This even distribution eliminates concerns about arm overloading, protecting both the vehicle and the lift. Strong load support translates to peace of mind during every job.
Minimum Garage Requirements
✓ Ceiling Height: At least 171' (14'3') recommended ✓ Footprint: 109' drive-thru x 151' overall (9'1' x 12'7') ✓ Concrete Thickness: Minimum 4' (101.6 mm) ✓ Concrete Strength: Minimum 3,500 PSI, steel-reinforced, cured at least 28 days ✓ Electrical: 220V β 20 AMP β 1PH ✓ Overall Lift Height: 165' (13'9') (measure before ordering)
✓ Ceiling Height: At least 171' (14'3') recommended
✓ Footprint: 109' drive-thru x 151' overall (9'1' x 12'7')
✓ Concrete Thickness: Minimum 4' (101.6 mm)
✓ Concrete Strength: Minimum 3,500 PSI, steel-reinforced, cured at least 28 days
✓ Electrical: 220V β 20 AMP β 1PH
✓ Overall Lift Height: 165' (13'9') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Tuxedo TP12KC-D 12,000 lb 2-Post Car Lift Specifications | |
| Manufacturer | Tuxedo |
| Model | TP12KC-D |
| Capacity | 12,000 lbs |
| Height Overall | 165β³ |
| Width Overall w/ Power Unit | 151β³ |
| Max Lift Height | 72β³ |
| Width Between Columns | 122β³ |
| Minimum Pad Height | 5.5β³ |
| Drive-Thru Clearance | 109β³ |
| Lifting Speed | 50 seconds |
| Arm Configuration | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach (minβmax) | 37-5/8β³. 56-3/4β³ |
| Long Arm Reach (minβmax) | Same (symmetric arms) |
| Narrow Bay Setting | N/A |
| Max Load Per Arm | 3,000 lbs |
| Shipping Weight | 2,295 lbs |
| Power Requirements | 220V. 20 AMP. 1PH |
| Warranty | 5 Years Structure, 1 Year Parts - Under Normal Use |
Tuxedo TP12KC-D Frequently Asked Questions
What does 'direct drive' mean on the TP12KC-D?
Each column's hydraulic cylinder acts directly on the carriage -- no chains or screw drives in the lifting path. Fewer wear components means longer service intervals and smoother travel under heavy loads, which matters when you're cycling 3/4-ton and 1-ton trucks every day.
Will my truck fit on the TP12KC-D?
At 3,000 lbs per arm, this 12,000 lb 2 post lift handles 3/4-ton and 1-ton pickups, work vans, and loaded service trucks. The 109' drive-thru clearance takes wide duallys and mirrors without drama. For anything heavier, the 15,000 lb TP15KCX is the next step.
TP12KC-D or TP12KFX -- which 12,000 lb Tuxedo is right?
Same capacity, different geometry. This TP12KC-D is the clear-floor model: nothing on the floor between the columns, but the overhead beam stands 165', so you need a 14'3'+ ceiling. The TP12KFX is the floor-plate version that fits under 11 feet. Mixed lighter work? The 11,000 lb TP11KC-DX costs less and needs only 12'6'.
How much ceiling height do I need?
Plan on 171' (14'3') -- the overhead beam stands 165'. This is a tall commercial-bay lift. If your ceiling is lower, the floor-plate TP12KFX carries the same 12,000 lbs at 121-1/2' tall.
Do I need to bolt it to the floor?
Yes -- every 2-post must be anchored. The TP12KC-D calls for steel-reinforced concrete at least 4' thick at 3,500 PSI, cured at least 28 days. Verify your slab before ordering.
Should I get a 2-post or a 4-post lift?
Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. Four-posts win for storage and drive-on ease. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
Is the Tuxedo TP12KC-D worth it?
Direct-drive hydraulics and a clear floor at a 12,000 lb rating, backed by a 5-year structural warranty -- that's the case for shops with the ceiling to use it. See the Reviews tab above for buyer feedback, and read our Are Tuxedo Lifts Worth It? breakdown on Garage Equip Pro Guides.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
