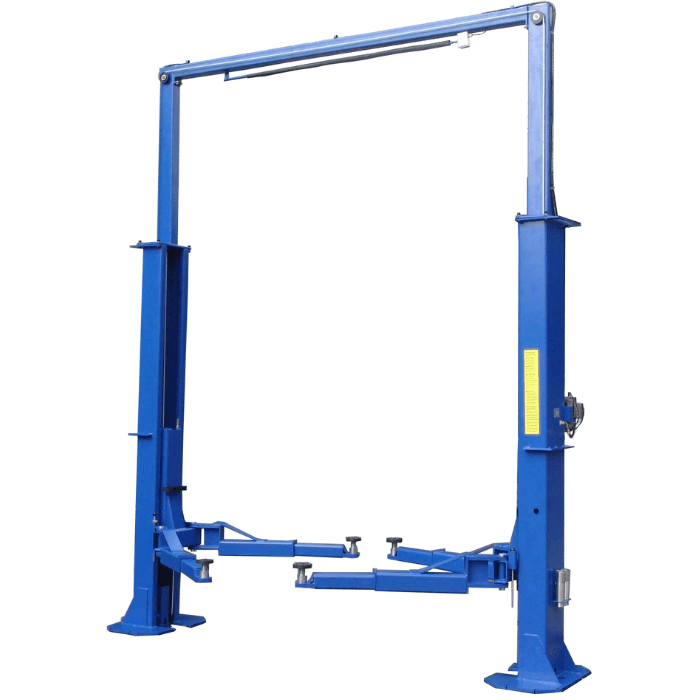

Tuxedo Heavy-Duty 15,000lb 2-Post Lift | TP15KCX
Built for Big Jobs: Tuxedo TP15KCX 15,000 lb Clear-Floor 2-Post Lift
Finding the right 2 post lift for a busy professional shop isnβt easy. Many standard lifts struggle with capacity, forcing mechanics to juggle oversized trucks and SUVs on equipment never designed for that kind of weight. Others rely on floor-plate setups that reduce undercar clearance, making it harder to roll jacks or tool carts through the bay. These challenges waste time, limit workflow, and put unnecessary strain on your team. Heavy-duty 15K 2-post lifts cross the inflection point from consumer-grade construction into commercial structural rating territory. The TP15KCX is sized and built for daily commercial-fleet cycling rather than occasional heavy work.
The Tuxedo TP15KCX 15,000 lb 2 post lift eliminates these headaches with its heavy-duty symmetric design and clear-floor construction. Standing tall at 179-3/8β³ with a wide 120-3/4β³ column spacing, itβs purpose-built for large commercial vehicles, fleet trucks, and heavy-duty SUVs. The chain-driven cylinders deliver smooth, reliable lifting, while the 45-second raise time ensures your shop keeps up with daily demand. 15,000 lb structural rating covers fleet trucks, work vans, ambulances, and most light commercial vehicles. Heavy-duty steel structure with reinforced base plates rated for sustained 15K cycling.
Built for professional garages, this commercial vehicle lift prioritizes safety, strength, and efficiency. With features like auto arm restraints, rubber door guards, and dual-point lock release, the TP15KCX offers confidence for every lift cycle. Whether youβre running a high-volume fleet repair operation or handling oversized pickups in a general service bay, this Tuxedo 2 post lift delivers the durability and accessibility you need. For commercial shops handling fleet-vehicle service and other 15K-capable work, the TP15KCX delivers genuine heavy-duty capability at a price commercial shops can absorb.
Need a different capacity or configuration? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Tuxedo Lifts Worth It? breakdown. Questions? Call Support Desk.
Benefits of the Tuxedo TP15KCX Two Post Lift
Key Features of the Tuxedo TP15KCX 2-Post Lift You'll Love:
β’ 15,000 lb Heavy-Duty Capacity: This lift is designed for large trucks, SUVs, and commercial fleet vehicles. The symmetric structure evenly distributes weight, giving your shop the ability to handle oversized loads without strain. With 3,750 lbs max per arm, stability and safety are always ensured.
β’ Chain-Driven Cylinders: The robust chain drive system provides consistent lifting performance under heavy loads. Built for durability, it reduces wear and maintenance needs, while delivering smooth operation and dependable strength every time.
β’ Dual-Point Lock Release: Safety comes first with a synchronized dual-column lock system. The dual-point release allows quick disengagement while ensuring both sides remain securely locked during operation, preventing uneven lifting or accidental drops.
β’ Auto Arm Restraint System: Each arm locks into place automatically during lifting, giving technicians confidence when securing vehicles. This prevents arm drift and maintains secure contact points, especially with trucks and SUVs that demand extra stability.
β’ Stackable Adapter Set: Included adapters make it easy to adjust for different vehicle frames. From fleet vans to lifted pickups, the stackable system adds flexibility, letting your shop service a wider variety of vehicles with ease.
Minimum Garage Requirements
✓ Ceiling Height: At least 185' (15'5') recommended ✓ Footprint: 109' drive-thru x 148' overall (9'1' x 12'4') ✓ Concrete Thickness: Minimum 4-1/4' (108 mm) ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 220V β 20 AMP β 1 PH ✓ Overall Lift Height: 179' (14'11') (measure before ordering)
✓ Ceiling Height: At least 185' (15'5') recommended
✓ Footprint: 109' drive-thru x 148' overall (9'1' x 12'4')
✓ Concrete Thickness: Minimum 4-1/4' (108 mm)
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 220V β 20 AMP β 1 PH
✓ Overall Lift Height: 179' (14'11') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Tuxedo TP15KCX 15,000 lb 2-Post Car Lift Specifications | |
| Manufacturer | Tuxedo |
| Model | TP15KCX |
| Capacity | 15,000 lbs |
| Height Overall | 179-3/8β³ |
| Width Overall (w/ Power Unit) | 148-3/8β³ |
| Max Lift Height | 76-1/2β³ |
| Width Between Columns | 120-3/4β³ |
| Min. Pad Height | 5β³ |
| Drive-Thru Clearance | 109-3/8β³ (109.375') |
| Lifting Speed | 45 seconds |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach (Min/Max) | 37β³. 52β³ |
| Long Arm Reach (Min/Max) | 37β³. 52β³ |
| Narrow Bay Setting | N/A |
| Max Load Per Arm | 3,750 lbs |
| Ship Weight | 2,575 lbs |
| Power Requirement | 220V. 20 AMP. 1 PH |
| Warranty | 5 Years Structure, 1 Year Parts - Under Normal Use |
Tuxedo TP15KCX Frequently Asked Questions
What vehicles is the TP15KCX built for?
This is the fleet-duty tier: a 15,000 lb 2 post lift with 3,750 lbs per arm for 1-ton duallys, ambulances, box trucks, shuttle buses, and loaded service bodies. The 109-3/8' drive-thru clearance takes wide commercial bodies, and the 76-1/2' max lift height gives full standing room underneath.
Do I really need 15,000 lbs of capacity?
If your heaviest vehicle is a 1-ton pickup, the 12,000 lb TP12KC-D handles it for less. The TP15KCX earns its keep when you're lifting trucks with utility bodies, fluids, and cargo on board -- rated capacity has to cover the vehicle as it arrives, not its empty curb weight.
Which heavy-duty Tuxedo 2-post is right for me?
This TP15KCX is the top of the 2-post line. The TP12KC-D (12,000 lb clear floor) and TP12KFX (12,000 lb floor plate for lower ceilings) cover most truck shops; the TP11KC-DX handles mixed car-and-truck work.
How much ceiling height do I need?
Plan on 185' (15'5') -- the overhead beam stands 179-3/8'. This is a commercial-bay lift; measure your tallest raised vehicle too, since a box truck at full lift needs serious clearance.
Do I need to bolt it to the floor?
Yes -- every 2-post must be anchored. The TP15KCX calls for concrete at least 4-1/4' thick at 3,000 PSI compressive strength; for a lift at this capacity, have your slab verified before ordering.
Should I get a 2-post or a 4-post lift?
Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. For heavy trucks that mostly need underbody access with wheels supported, a 4-post can be the better call. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
Is the Tuxedo TP15KCX worth it?
A 15,000 lb clear-floor rating with a 5-year structural warranty puts this against lifts costing thousands more. See the Reviews tab above for buyer feedback, and read our Are Tuxedo Lifts Worth It? breakdown on Garage Equip Pro Guides.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
