Tired of Space Constraints? Upgrade to the Tuxedo TP9KSCX 9,000 lb 2‑Post Car Lift for Faster, Safer Service

Shopping for a two‑post car lift can feel overwhelming. You're looking for strength, reliability, and ease of use. But so many options either fall short on durability or complicate your workspace with clunky arms and exposed cables. The Tuxedo TP9KSCX takes the guesswork out of the equation by pairing a 9,000 lb capacity with a space‑saving symmetric design that keeps your garage clear and safe. Its clear‑floor setup eliminates trip hazards and exposed cables, while a rugged single‑piece column reinforces structural strength for everyday reliability. Whether you service compact sedans or full‑size SUVs, this lift delivers the stability you need without compromise. Clear-floor symmetric 2-post lifts at the 9K tier hit a practical sweet spot: enough capacity for full-size sedans, SUVs, and light trucks, plus the clear-floor workflow that keeps the bay free of obstacles between posts.

This 2‑post vehicle lift goes the extra mile with rubber door guards and internal hose routing that protect vehicles and streamline your shop’s appearance. Chain‑drive cylinders provide smooth, consistent lifting action you can count on for years, and the TP9KSCX reaches its maximum lift height of 72 inches in just 50 seconds. So you spend more time working and less time waiting. With low‑profile spin‑up pads and stackable adapters, you can tackle everything from lowered sports cars to lifted trucks without changing equipment. It’s all about giving you professional‑grade performance in a package that’s easy to install and maintain. 9,000 lb capacity covers virtually every passenger vehicle on the road. Symmetric arm geometry distributes load evenly across both posts, with the clear-floor configuration keeping cables and hoses overhead.

Built with practicality in mind, the TP9KSCX incorporates a dual‑point lock release system and automatic arm restraints for rock‑solid safety every time you raise or lower a vehicle. The symmetric arm configuration ensures even weight distribution, balanced access, and unobstructed door opening on both sides. From seasoned mechanics to serious DIY enthusiasts, this lift is engineered for efficiency, safety, and long‑term value. For shops handling daily passenger-vehicle service, the TP9KSCX delivers the right capacity and workflow without forcing a tradeoff between the two.

Need a different capacity or configuration? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Tuxedo Lifts Worth It? breakdown. Questions? Call Support Desk.

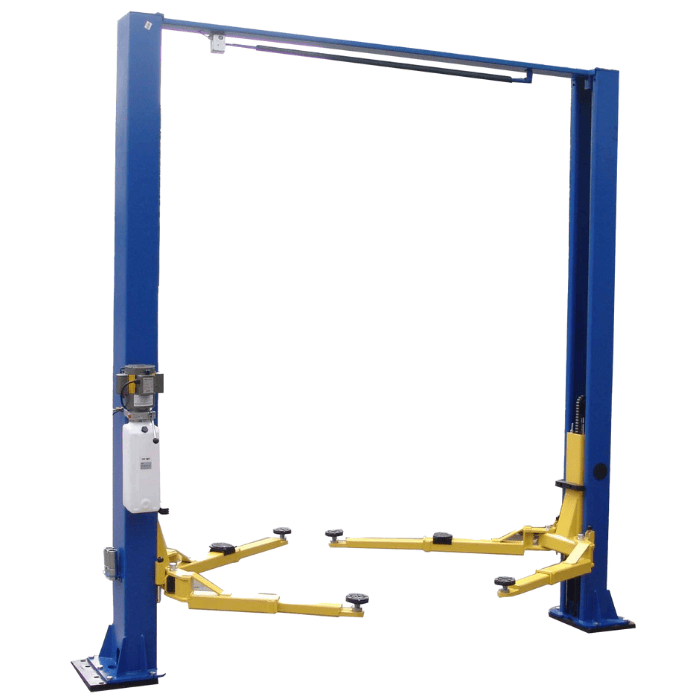

Blue TP9KSCX 9,000 lb two post clear floor lift with symmetric yellow arms and overhead bar, ready for professional garage installation.

Benefits of the Tuxedo TP9KSCX

9,000 lb Capacity
Covers sedans, SUVs, and half-ton pickups with margin. The kind of structure that holds up to professional-shop volume.
Chain-Drive Cylinders
A rugged chain-driven system delivers smooth, consistent lifting with fewer maintenance concerns across years of daily cycling.
Dual Point Lock Release
Locks at both columns disengage together, minimizing the chance of uneven lowering on heavier vehicles.
Symmetric Swing Arms
Arms reach 31' to 45' and center the vehicle between the posts, splitting the load evenly. The steadier setup for nose-heavy vehicles.
Internal Hose Routing
Hoses run inside the columns instead of along the outside, cutting trip hazards and protecting them from incidental damage in tight bays.
Clear Floor Workflow
Nothing at ground level between the posts, so tool carts, creepers, and transmission jacks roll straight under the vehicle.

Key Features of the Tuxedo TP9KSCX 2‑Post Lift You'll Love:

• Symmetric Arm Design: The symmetric arm layout ensures even weight distribution and balanced access on both sides. Symmetric loading distributes weight evenly across both posts, simpler to operate than asymmetric layouts for sedan-heavy fleets.

• Chain Drive Cylinders: Rugged chain‑driven system guarantees smooth, consistent lifting with fewer maintenance concerns. Chain-driven cylinders avoid the cable-equalization wear that's the primary failure point on cheaper 2-post lifts.

• Dual Point Lock Release System: Secure dual‑point safety lock minimizes the chance of uneven lowering, improving shop safety. Dual-point release engages locks at both columns simultaneously, eliminating the uneven-descent risk of single-point systems on heavier vehicles.

• Internal Hose Routing: Reduces trip hazards and protects hoses for a cleaner, more professional workspace. Internal hose routing also looks more professional and protects hoses from incidental damage during service work in tight bays.

• Low‑Profile Spin‑Up Lift Pads: Easily adjust to various vehicle heights; stackable adapters handle anything from sports cars to lifted trucks. Stackable adapters cover frame heights from low sports cars to body-on-frame trucks. One lift handles the full vehicle mix.

Dimension diagram of a 9,000 lb two post clear floor vehicle lift (TP9KSCX) showing 138-inch overall width, 142.9-inch height, and 96-inch drive-through clearance, plus close-ups of stackable height adapters and drop-in swivel pads.

Minimum Garage Requirements

✓ Ceiling Height: At least 144' (12'0') recommended ✓ Footprint: 96' drive-thru x 138' overall (8'0' x 11'6') ✓ Concrete Thickness: Minimum 4-1/4' (108 mm) ✓ Concrete Strength: Minimum 3000 PSI compressive ✓ Electrical: 220V / 20 AMP / Single Phase ✓ Overall Lift Height: 142 7/8' (11'11') (measure before ordering)

✓ Ceiling Height: At least 144' (12'0') recommended
✓ Footprint: 96' drive-thru x 138' overall (8'0' x 11'6')
✓ Concrete Thickness: Minimum 4-1/4' (108 mm)
✓ Concrete Strength: Minimum 3000 PSI compressive
✓ Electrical: 220V / 20 AMP / Single Phase
✓ Overall Lift Height: 142 7/8' (11'11') (measure before ordering)

*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.

Tuxedo TP9KSCX 9,000 lb 2‑Post Vehicle Lift Specifications

Manufacturer Tuxedo
Model TP9KSCX
Lifting Capacity 9,000 lbs (4,082 kg)
Max Lifting Height 72 inches (1,829 mm)
Overall Height 142‑7/8 inches (3,629 mm)
Overall Width w/ Power Unit 138 inches (3,505 mm)
Width Between Columns 113‑5/8 inches (2,886 mm)
Drive‑Thru Clearance 96 inches (2,438 mm)
Arm Reach (Short & Long) 31-45 inches (787-1,143 mm)
Motor / Power Requirement 220V / 20 AMP / Single Phase
Net Weight 1,370 lbs (621 kg)
Concrete Requirement Minimum 4-1/4 inches (108 mm) at 3000 PSI

Tuxedo TP9KSCX Frequently Asked Questions

Why choose symmetric arms?

Symmetric arms center the vehicle between the posts and split the load evenly -- the steadier setup for trucks, vans, and anything nose-heavy. If wide-open door clearance matters more (daily loading, interior work), the asymmetric TP9KACX is this lift's sibling.

Will my truck fit on the TP9KSCX?

The 9,000 lb rating covers sedans, SUVs, and half-ton pickups with margin, and 72' of rise puts the underside at standing height. For 3/4-ton trucks and vans, step up to the 11,000 lb TP11KC-DX.

Which Tuxedo 9,000 lb 2-post is right for me?

This TP9KSCX is the symmetric clear-floor. The TP9KACX swaps to asymmetric arms for door clearance; the TP9KFX is the floor-plate model for 10-foot ceilings; and the TP9KF-TUX is the streamlined symmetric alternative.

How much ceiling height do I need?

The overhead beam stands about 143' (11'11'), so plan on a 12-foot ceiling. Under 10 feet? The floor-plate TP9KFX carries the same 9,000 lbs at about 112' tall.

Do I need to bolt it to the floor?

Yes -- every 2-post must be anchored. Plan on a slab at least 4-1/4' thick at 3,000 PSI compressive strength, and verify your concrete before ordering.

Should I get a 2-post or a 4-post lift?

Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. Four-posts win for storage and drive-on ease. Our 2-Post vs 4-Post guide walks through the decision in five minutes.

Is the Tuxedo TP9KSCX worth it?

Clear-floor convenience with a 5-year structural warranty at a floor-plate price point -- that's the case. See the Reviews tab above for buyer feedback, and read our Are Tuxedo Lifts Worth It? breakdown on Garage Equip Pro Guides.

Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.

Recommended Concrete Slab & Electrical Setup

Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.

Concrete Slab Depth

9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.

Electrical Supply

Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.

Ceiling Clearance

Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
