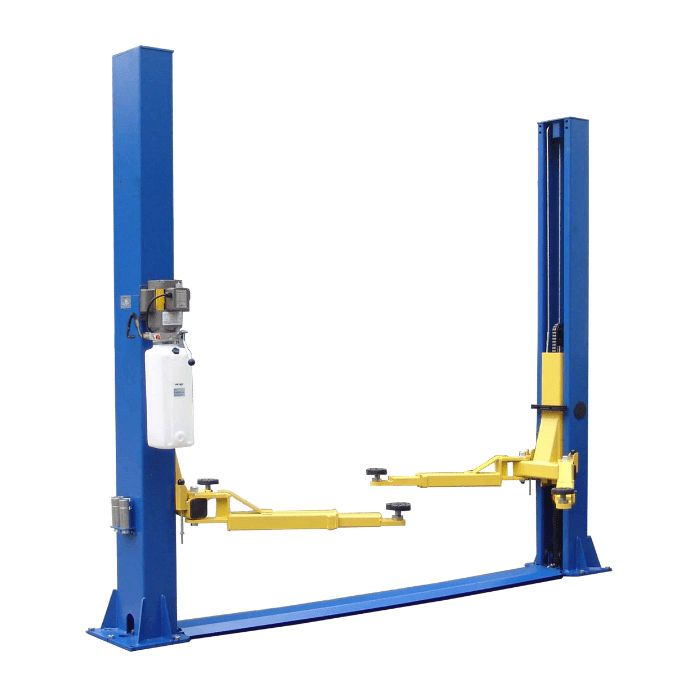

Tuxedo 9,000 lb Two Post Floor Plate Lift - Symmetric | TP9KFX
Reliable Floor-Plate Power: Tuxedo TP9KFX 9,000 lb 2-Post Car Lift for Safer, Smoother Service
Finding the right 2 post lift for your shop isn’t easy. Many buyers struggle with lifts that don’t fit their space, lack proper safety locks, or wear down too quickly under daily use. Others purchase lifts that promise big numbers but fall short when handling heavier vehicles or ensuring operator safety. If you’re setting up your home garage or professional bay, you need a lift that doesn’t just “get by” but performs reliably every single time. That’s where the Tuxedo TP9KFX steps in. Built with a professional-grade 9,000 lb capacity and a straightforward floor-plate design. Floor-plate 2-post lifts at the 9K tier are increasingly the choice for residential and small-shop installations where overhead 2-post ceiling clearance is impractical. The TP9KFX brings the symmetric arm configuration into floor-plate format.
Unlike lighter-duty models, the 9,000 lb 2 post lift ensures stable lifting without compromising safety or convenience. Its symmetric arm setup allows balanced vehicle raising, making it suitable for sedans, SUVs, and light trucks. With a drive-thru clearance of over 101' and a maximum lift height of 72', it accommodates a wide range of service jobs from oil changes to transmission work. The 50-second rise time is quick enough for shop efficiency, but not rushed. Offering a controlled, confident lift every time. Plus, the chain-over hydraulic system paired with equalizer cables keeps both posts synchronized for smooth operation. 9,000 lb capacity handles full-size sedans, SUVs, and most light trucks. Floor-plate hydraulic routing keeps the bay overhead clear, working in standard residential 9-10 foot ceilings.
Tuxedo 2 post lifts like the TP9KFX are designed with both professionals and serious DIY mechanics in mind. Whether you’re outfitting a small shop or upgrading your home garage, this lift combines commercial durability with user-friendly operation. Its dual-safety lock system, automatic arm restraints, and heavy-duty anchors mean you can work beneath vehicles knowing your equipment has your back. Built tough but easy to install, this symmetric floor plate model is an investment in reliability, safety, and efficiency for years to come. For home garages or commercial bays with limited ceiling height, the TP9KFX delivers true 9K capability without the overhead-clearance compromise.
Need a different capacity or configuration? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Tuxedo Lifts Worth It? breakdown. Questions? Call Support Desk.
Benefits of the Tuxedo TP9KFX 2-Post Lift
Key Features of the Tuxedo TP9KFX 2-Post Lift You'll Love:
• Symmetric 2-Post Design: This lift uses a symmetric arm setup, making it ideal for a wide range of vehicles from compact cars to light-duty trucks. By balancing the weight evenly across both columns, you get consistent stability during service tasks, reducing stress on the lift and improving operator safety.
• Automatic Arm Restraints: Each arm features an automatic gear lock engagement system. As soon as the lift begins to rise, the arms lock securely in place, preventing them from shifting under load. This added peace of mind means you can focus on the job without worrying about arm slippage.
• Dual-Safety Lock System: The TP9KFX includes a mechanical lock system paired with a manual cable-pull release. This redundancy ensures that even if one safety feature fails, the other keeps your vehicle securely held in place. Meeting OSHA and ANSI standards for professional use.
• Self-Lubricating UHMW Sliders: To keep maintenance simple, the carriage rides on self-lubricating UHMW polyethylene sliders. These reduce wear on metal components, cut down on friction, and extend the life of your lift. All without requiring constant grease applications.
• Truck Adapters & Rubber Pads: Height extensions and double-screw rubber pads are included, making this lift versatile enough to handle higher vehicles. With adapters in place, you can easily service SUVs and light-duty trucks without struggling with clearance issues.
Minimum Garage Requirements
✓ Ceiling Height: At least 117' (9'9') recommended ✓ Footprint: 101' drive-thru x 134' overall (8'5' x 11'2') ✓ Concrete Thickness: Minimum 4-1/4' (108 mm) ✓ Concrete Strength: Minimum 3,000 PSI compressive ✓ Electrical: 220V / 20 AMP / 1 Phase ✓ Overall Lift Height: 111' (9'3') (measure before ordering)
✓ Ceiling Height: At least 117' (9'9') recommended
✓ Footprint: 101' drive-thru x 134' overall (8'5' x 11'2')
✓ Concrete Thickness: Minimum 4-1/4' (108 mm)
✓ Concrete Strength: Minimum 3,000 PSI compressive
✓ Electrical: 220V / 20 AMP / 1 Phase
✓ Overall Lift Height: 111' (9'3') (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Tuxedo TP9KFX 9,000 lb 2-Post Car Lift Specifications | |
| Manufacturer | Tuxedo |
| Model | TP9KFX |
| Type | 2 Post Car Lift, Symmetric, Floor Plate |
| Lifting Capacity | 9,000 lbs. (2,250 lbs. Per arm) |
| Overall Height | 111-7/8' |
| Overall Width (with Power Unit) | 134-5/8' |
| Width Between Columns | 110-3/8' |
| Drive-Thru Clearance | 101' |
| Max Lift Height | 72' |
| Min. Pad Height | 4' |
| Lifting Speed | ~50 seconds |
| Arm Design | Symmetric swing arms (31'-45') |
| Power Requirements | 220V. 20 AMP. 1 Phase |
| Hydraulic System | Chain-over with equalizer cables |
| Hydraulic Fluid | 10-12 quarts SAE-10 / AW32 |
| Safety Locks | Dual system with manual release |
| Ship Weight | 1,270 lbs. |
| Concrete Requirements | 4-1/4' min. Thickness |
| Anchoring | 3/4' anchor bolts (130 ft-lbs. Torque) |
| Shipping Dimensions | 117' x 18' x 42' |
| Warranty | 5 Years Structure, 1 Year Parts - Under Normal Use |
Tuxedo TP9KFX Frequently Asked Questions
What does 'floor plate' mean on the TP9KFX?
Instead of an overhead crossbeam, the hydraulics and equalizer cables run through a low plate across the floor between the columns. That keeps the whole lift at just 111-7/8' tall -- making this the 2 post lift for low ceiling garages where a clear-floor model simply won't fit. The trade-off is a small plate you drive over and slightly less open floor between the posts.
Will my truck fit on the TP9KFX?
The 9,000 lb 2 post lift rating covers sedans, SUVs, and half-ton pickups with margin, and the included truck adapters handle taller frames. Max lift height is 72' -- plenty for wheel and underbody work under a lower ceiling. For 3/4-ton trucks and vans, step up to the 11,000 lb TP11KC-DX.
Which Tuxedo 9,000 lb 2-post is right for me?
This TP9KFX is the floor-plate model for low-ceiling bays. If you have 12 feet of ceiling and want the floor completely clear, the TP9KACX (asymmetric) and TP9KSCX (symmetric) move the hydraulics overhead. The TP9KF-TUX is the streamlined symmetric floor-plate alternative.
How much ceiling height do I need?
Plan on about 117' (9'9') so vehicles can rise to full height -- the columns themselves stand only 111-7/8'. That's why this model is the go-to under standard 10-foot residential ceilings where overhead 2-posts need 12 feet. Measure your tallest vehicle at full lift before ordering.
Do I need to bolt it to the floor?
Yes -- every 2-post must be anchored. The TP9KFX calls for concrete at least 4-1/4' thick at 3,000 PSI compressive strength, with 3/4' anchor bolts torqued to 130 ft-lbs. Verify your slab before ordering.
Should I get a 2-post or a 4-post lift?
Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. Four-posts win for storage and drive-on ease. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
Is the Tuxedo TP9KFX worth it?
A 5-year structural warranty on a true 9,000 lb floor-plate lift that fits under a 10-foot ceiling is the Tuxedo pitch in one line. See the Reviews tab above for buyer feedback, and read our Are Tuxedo Lifts Worth It? breakdown on Garage Equip Pro Guides.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Recommended Concrete Slab & Electrical Setup
Verify your shop bay dimensions before installation. Contact our lift specialists at contact@garageequippro.shop with any questions.
Concrete Slab Depth
9K–11K lb lifts typically require 4″–5.9″ of 3,000 PSI cured concrete (28+ days cure on new pours). Heavy-duty 12K–16K lb models require 5″–6″ depth.
Electrical Supply
Most 2-post lifts and commercial 4-post lifts use a dedicated 220V single-phase 30A circuit breaker. Select 8,500 lb & 9,500 lb 4-post storage lifts offer 110V options.
Ceiling Clearance
Measure from the garage slab to your lowest overhead obstruction (door opener, tracks, or beam) and compare against the Overall Height in the Specifications table.
